Honeypot Lane Health Centre

MCS Certified NICEIC Approved B Corp Certified

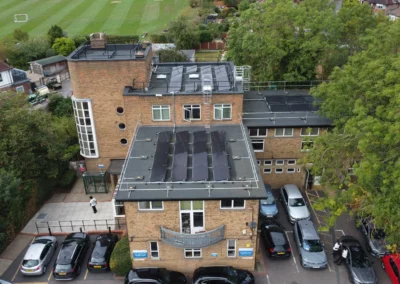

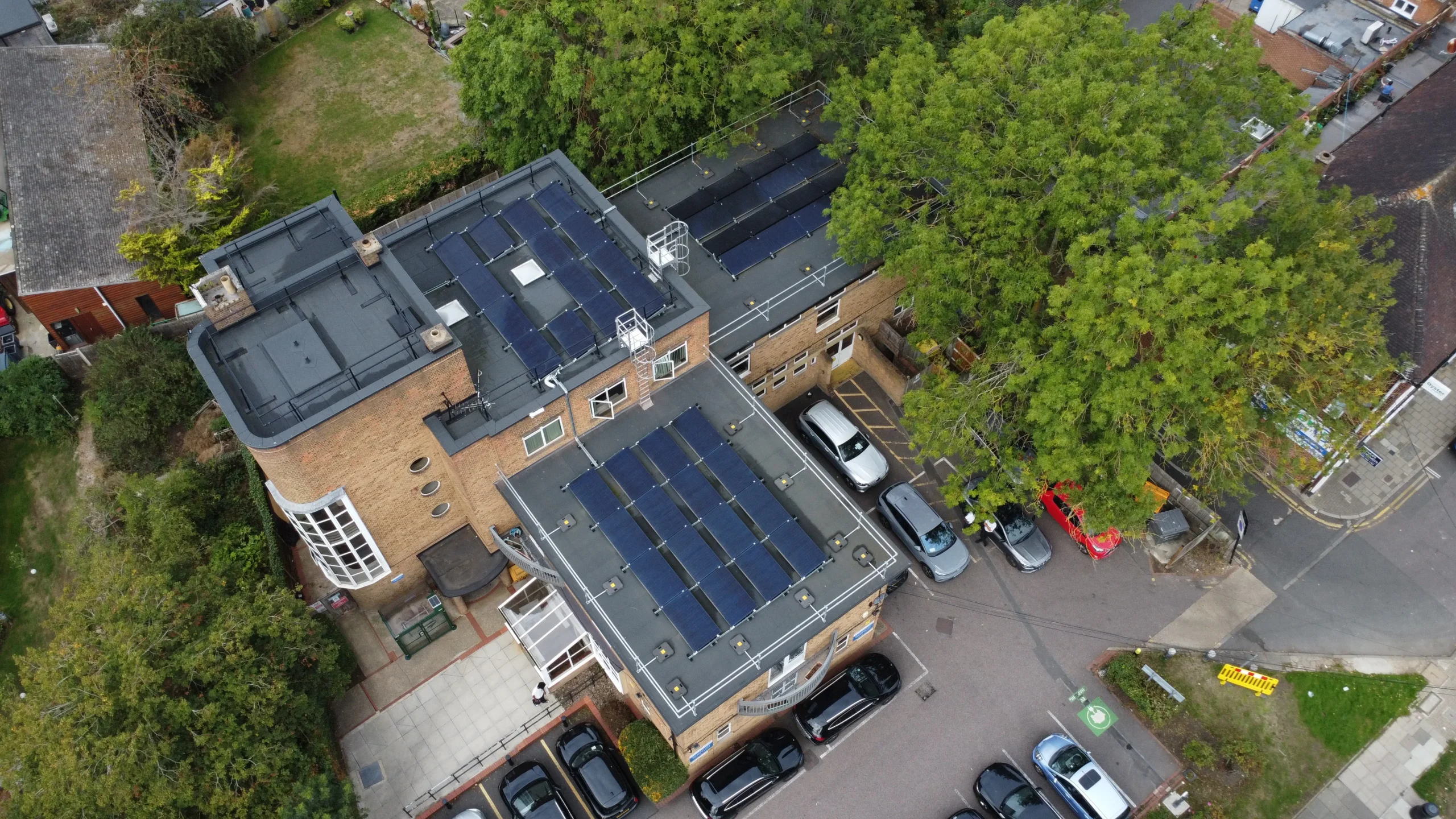

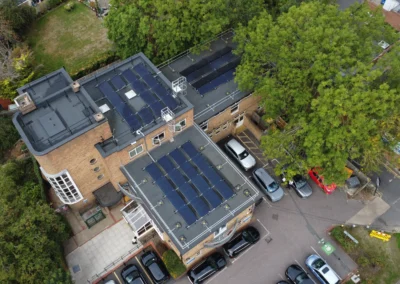

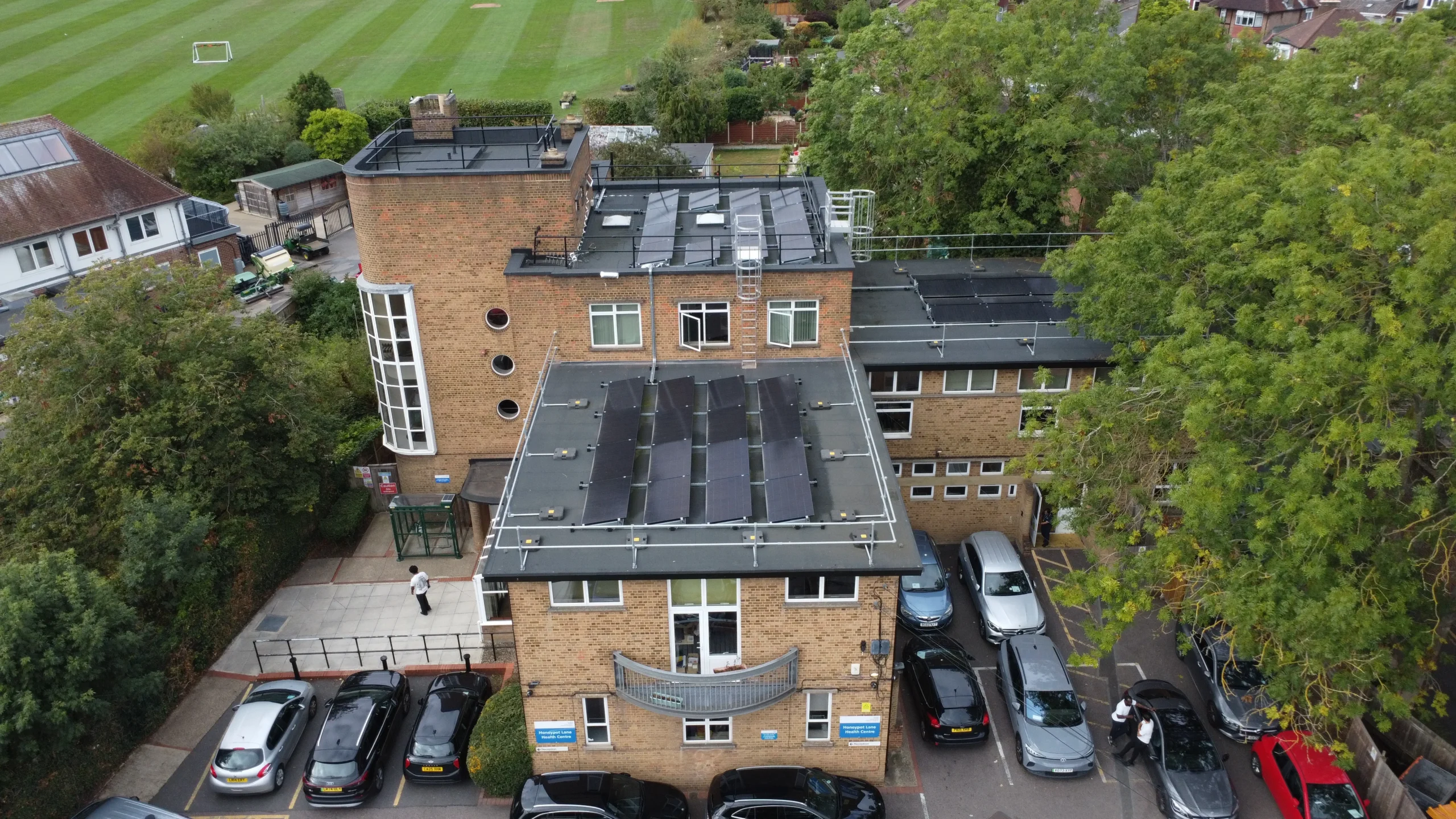

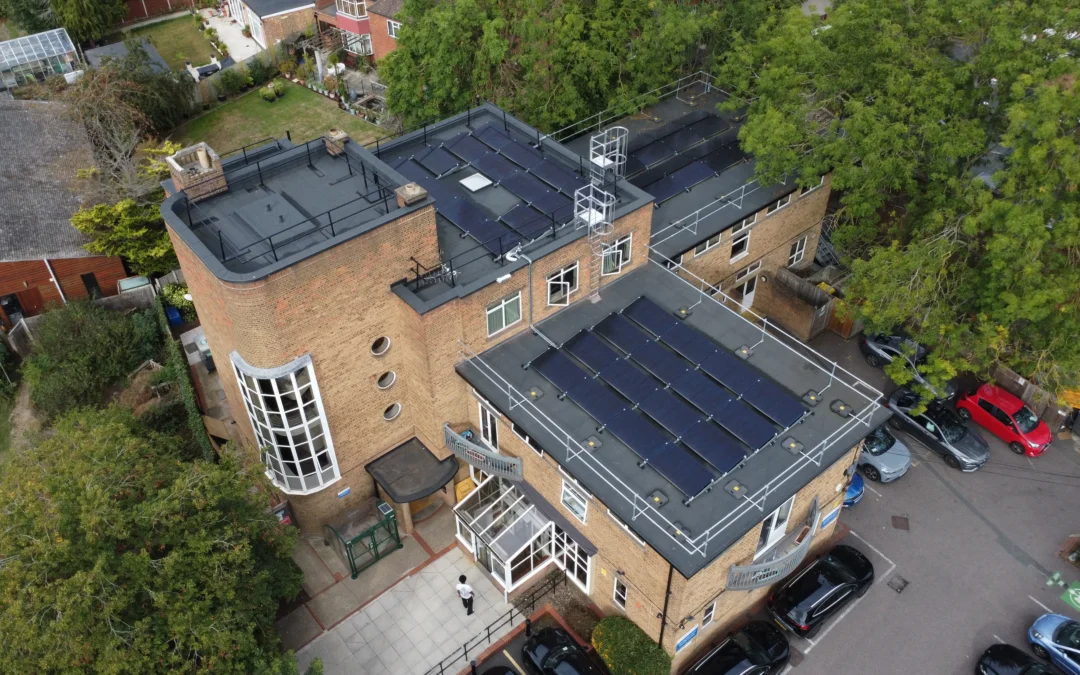

Honeypot Lane Health Centre

Honeypot Lane Health Centre

Project Overview

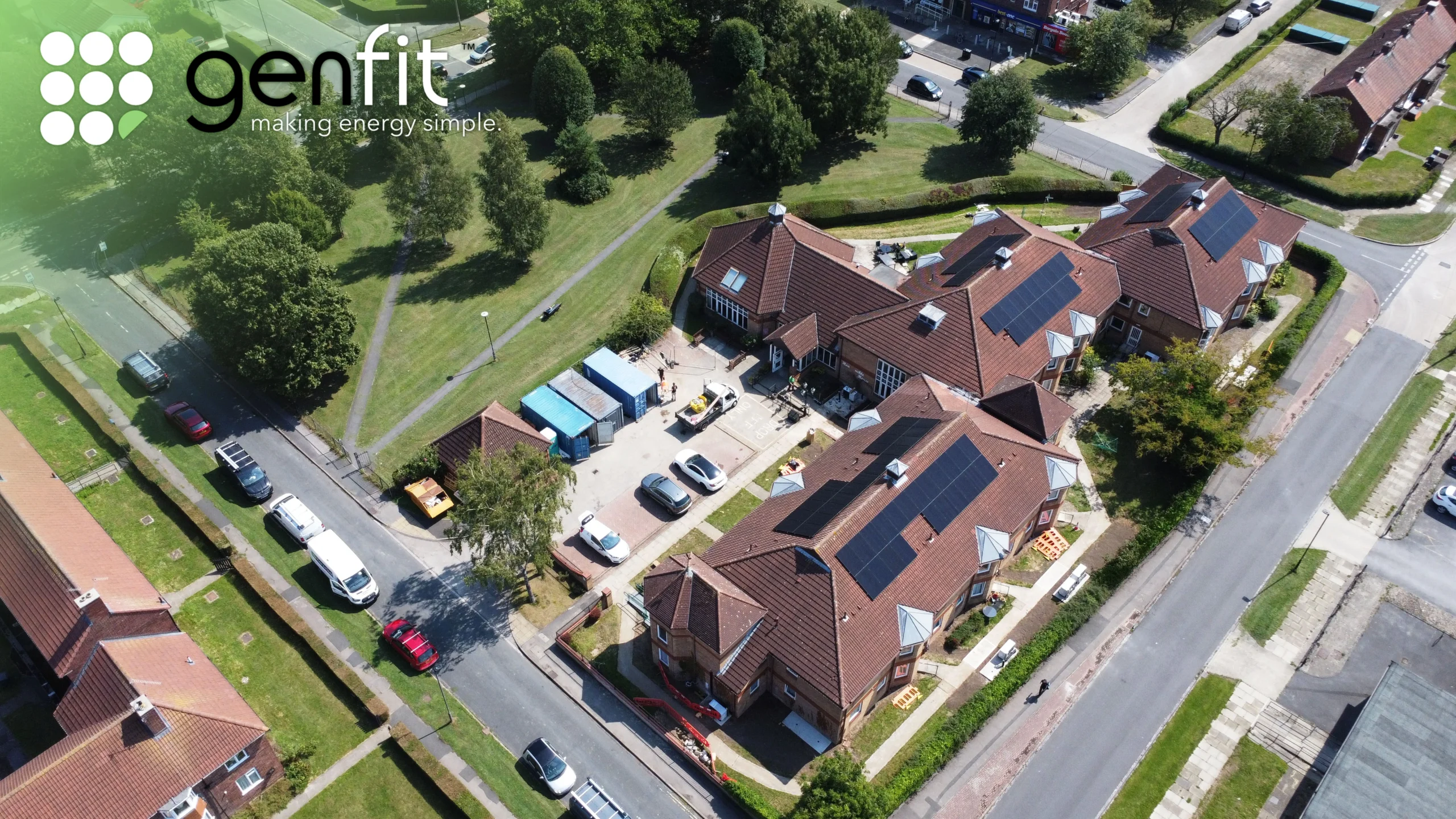

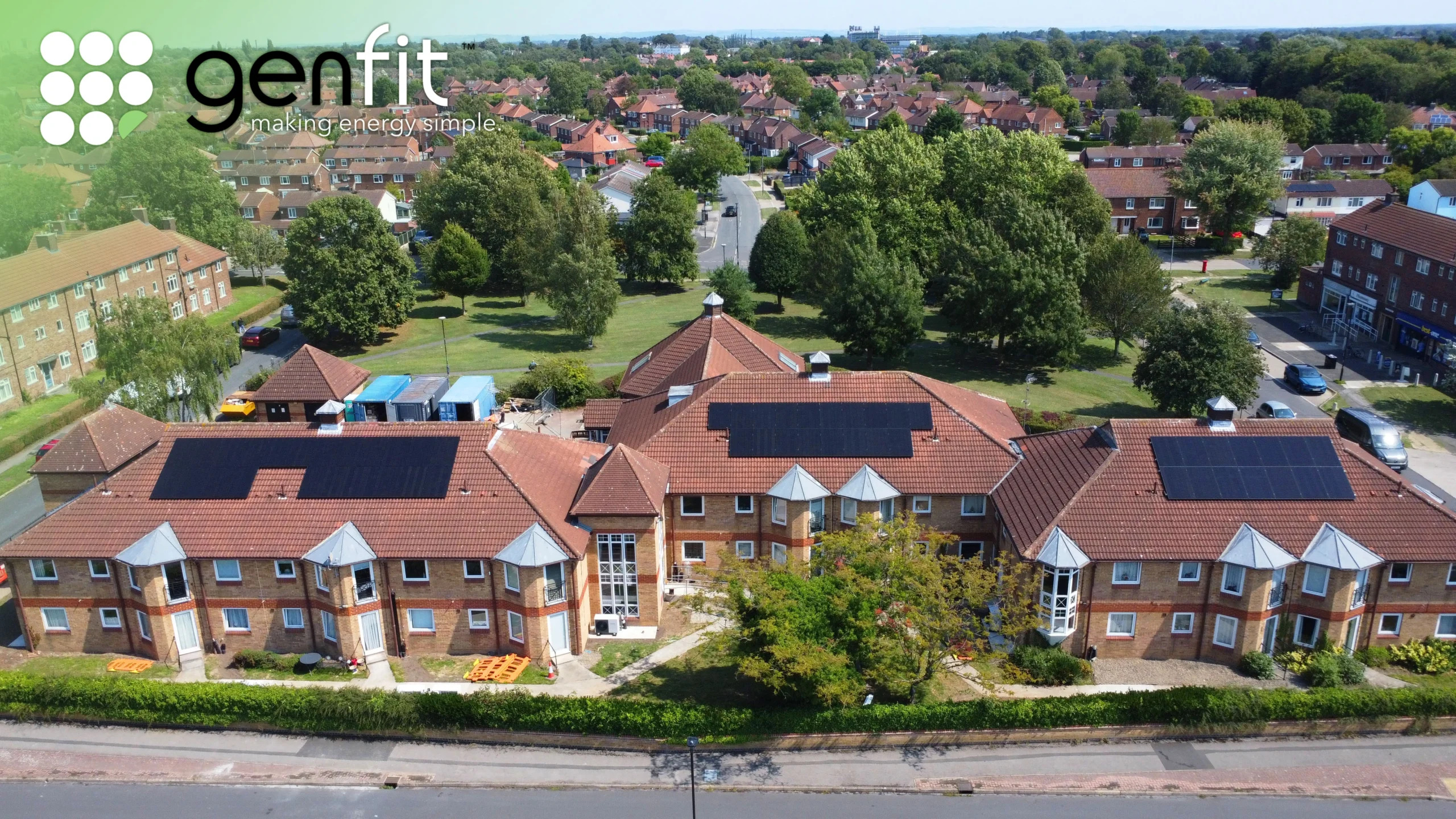

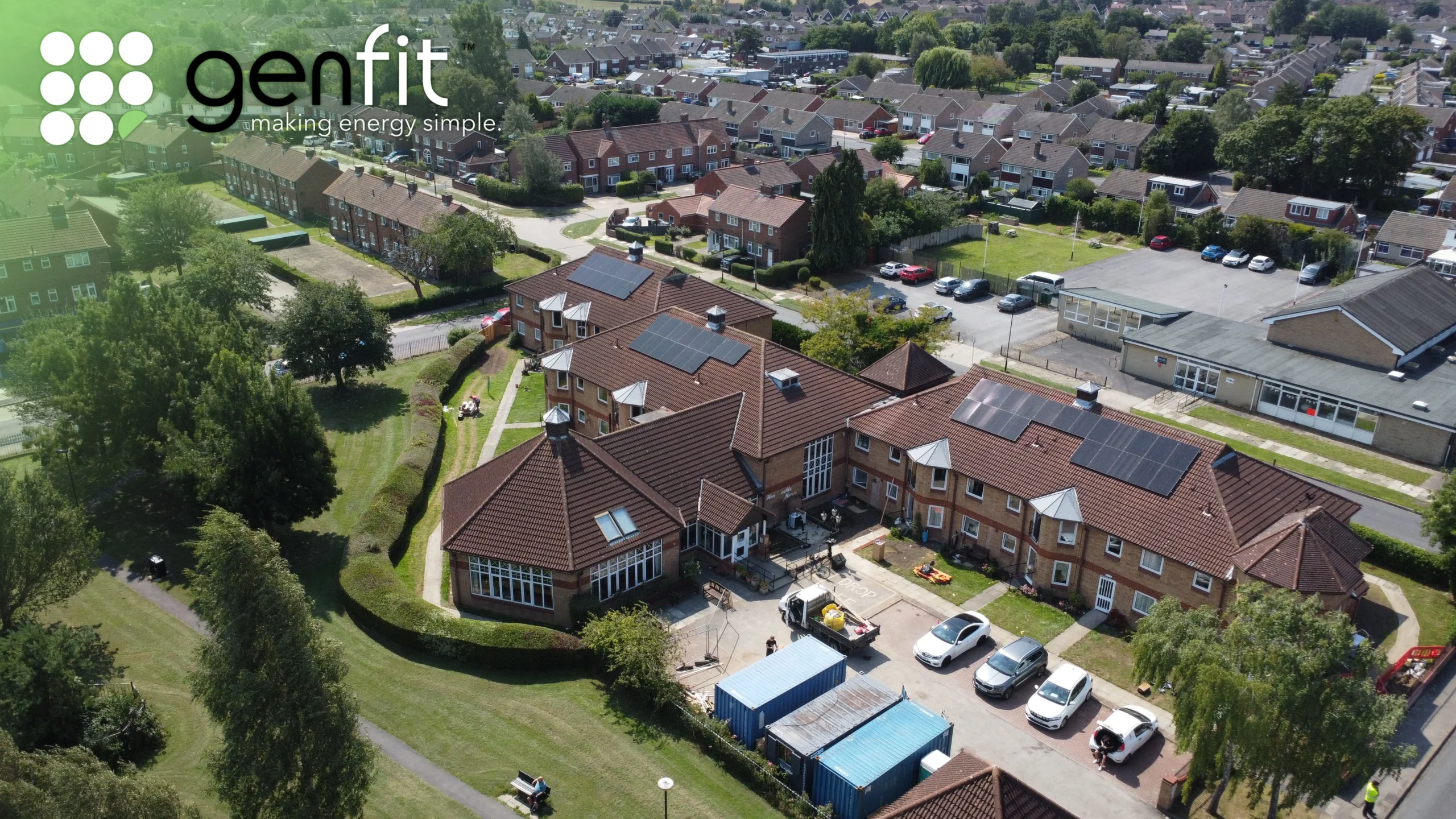

Genfit completed a rooftop Solar PV installation at Honeypot Lane Health Centre for Central London Community Healthcare NHS Trust (CLCH).

The project involved the installation of a 23 kWp Solar PV system, designed to generate clean renewable electricity directly on site and help reduce the health centre’s reliance on grid-supplied energy.

With 46 solar panels installed across the rooftop, the system is expected to generate approximately 18.76 MWh of renewable electricity each year, supporting the site’s day-to-day energy demand while contributing to CLCH’s wider sustainability goals.

The installation is estimated to save around 3.63 tonnes of CO₂ emissions annually, equivalent to approximately 167 trees planted, helping reduce the environmental impact of the building and support a lower-carbon healthcare estate.

Honeypot Lane Health Centre
Honeypot Lane Health Centre

Project Details

Location
Warrington
Client
TJ Morris
System Size
5.12 MWp
Annual Generation
4.16 GWh
CO₂ Savings
805 Tonnes
Panels Installed
10,349

System Design & Technology

The installation utilises a SolarEdge commercial PV system, selected for its module-level optimisation, detailed monitoring and enhanced safety features.

Green Tick 1 × SolarEdge SE20K three-phase inverter provides efficient conversion of the solar energy generated on site.

Green Tick 46 × SolarEdge S500 power optimisers help maximise the performance of each individual solar panel across the array.

Green Tick 46 × DMEGC 500W solar panels make up the 23 kWp rooftop system, providing clean renewable electricity for the health centre.

Green Tick Advanced SolarEdge monitoring and safety features provide real-time system performance data, module-level visibility and automatic voltage reduction.

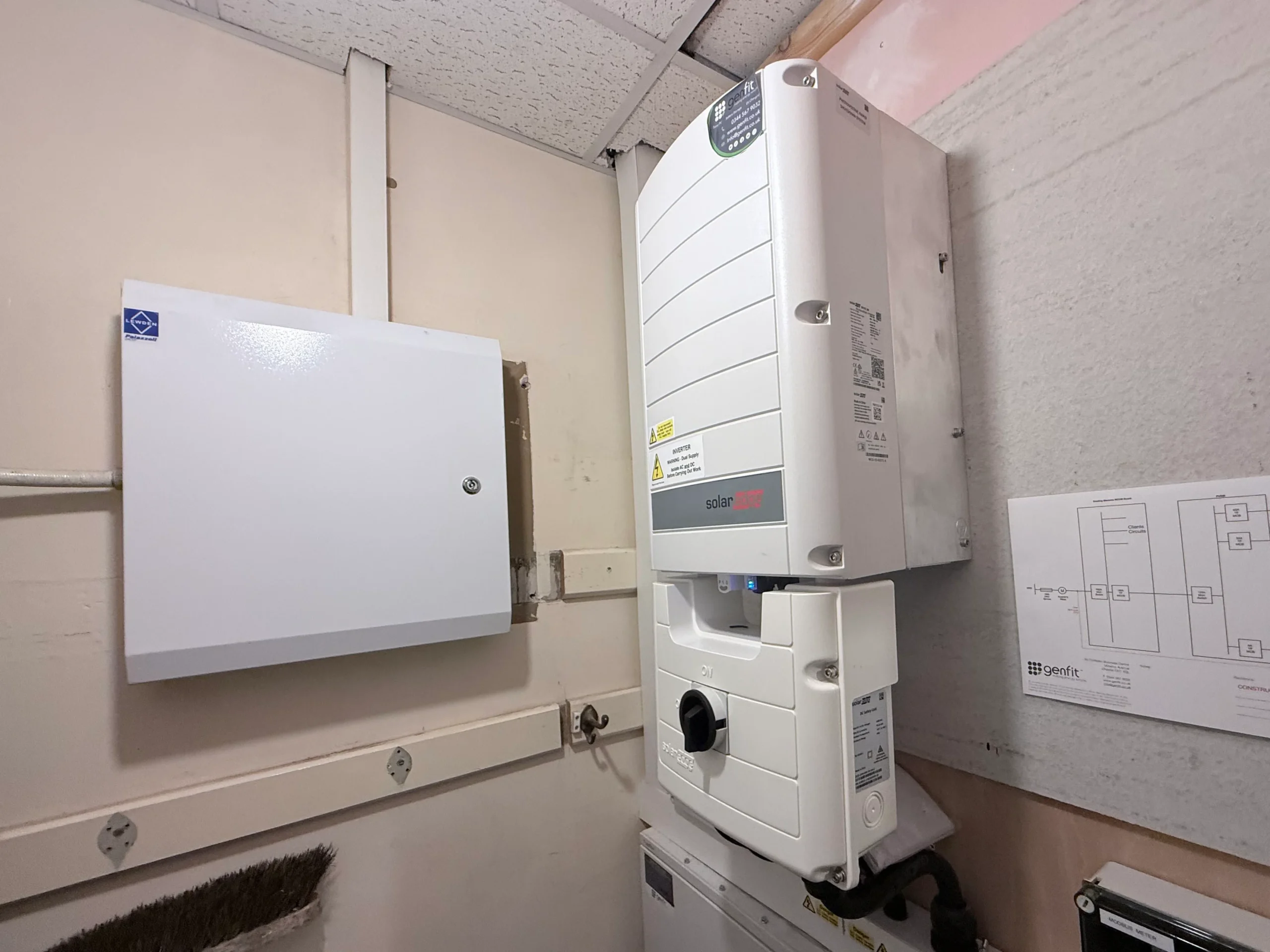

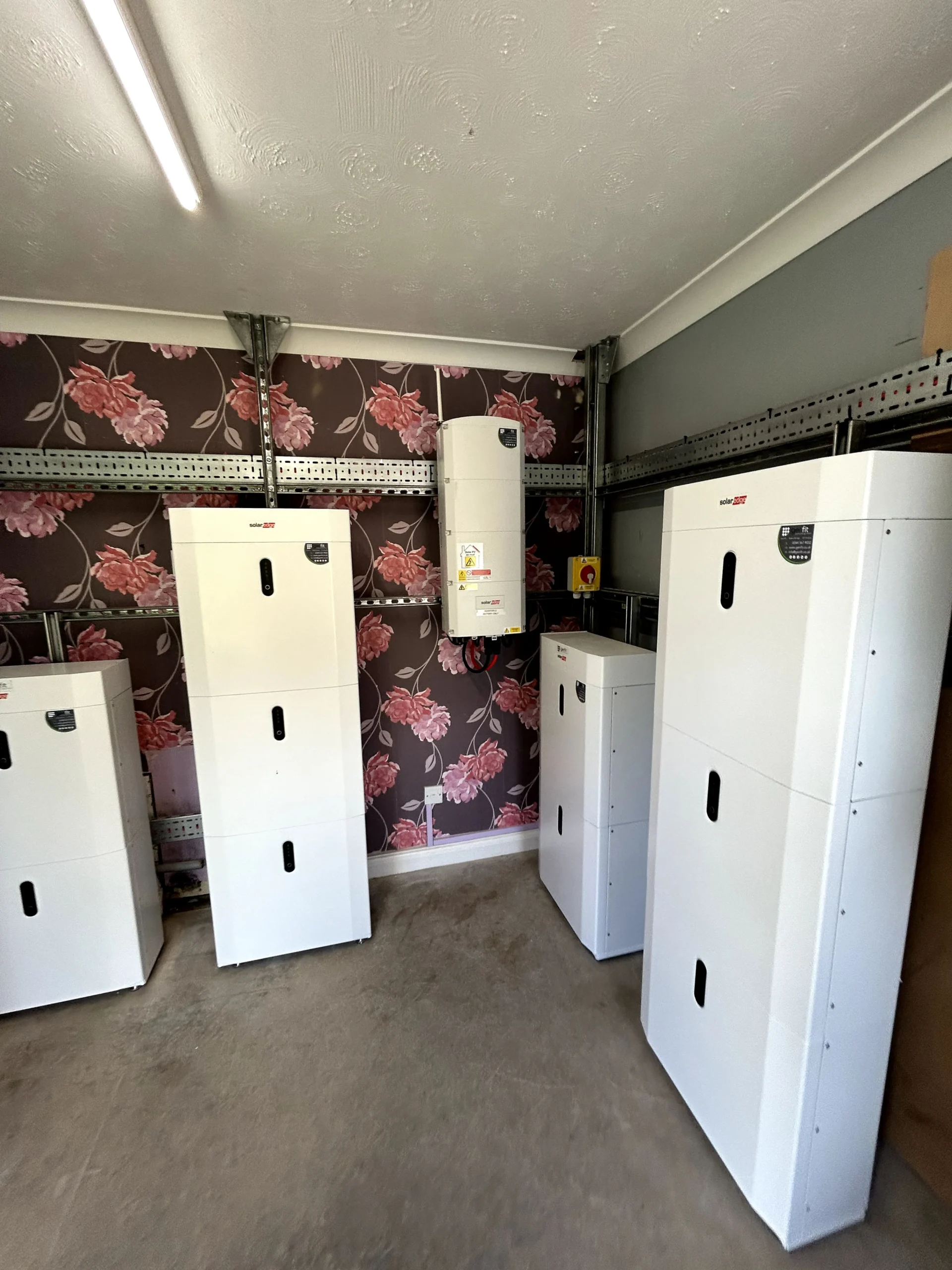

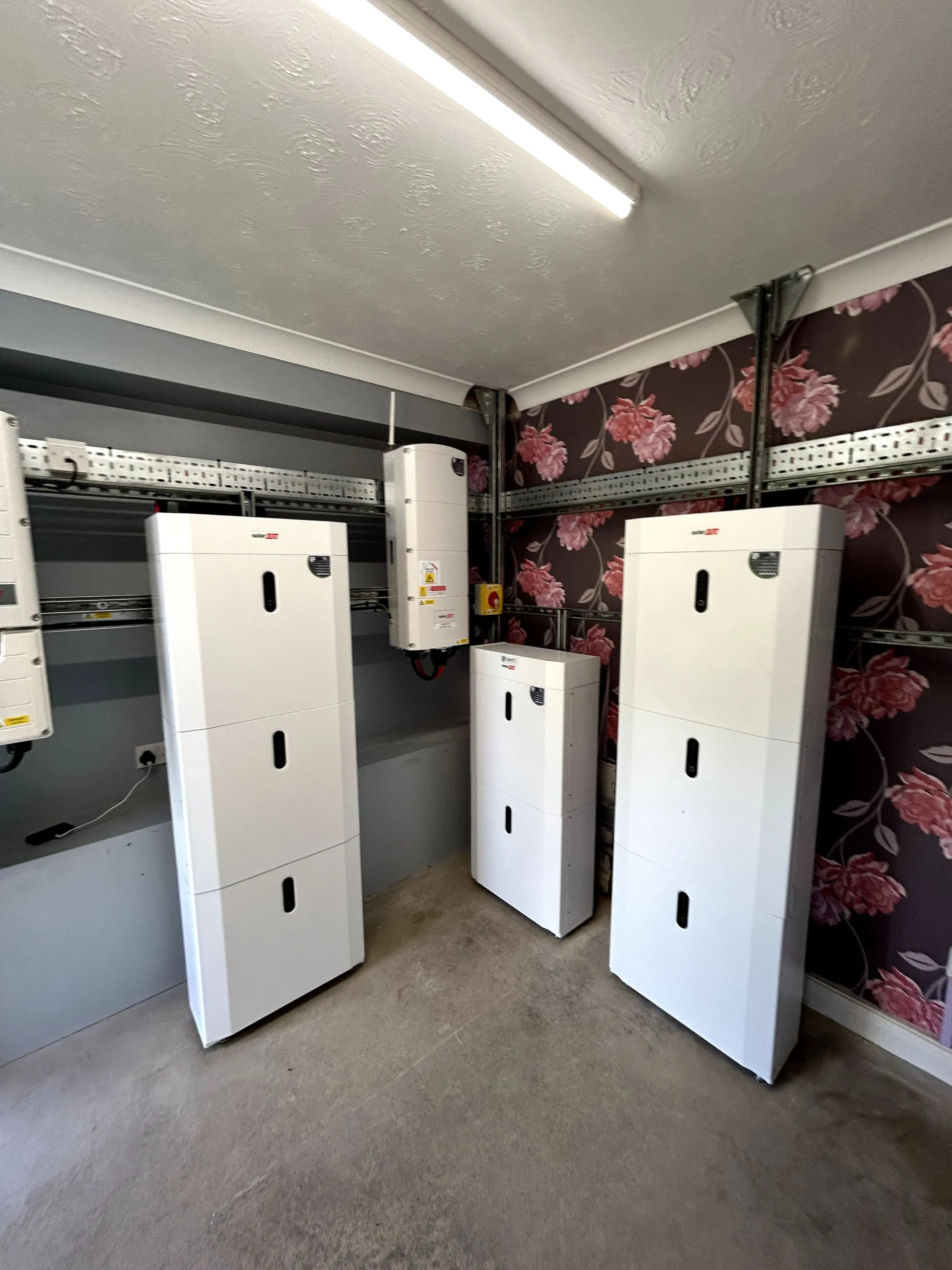

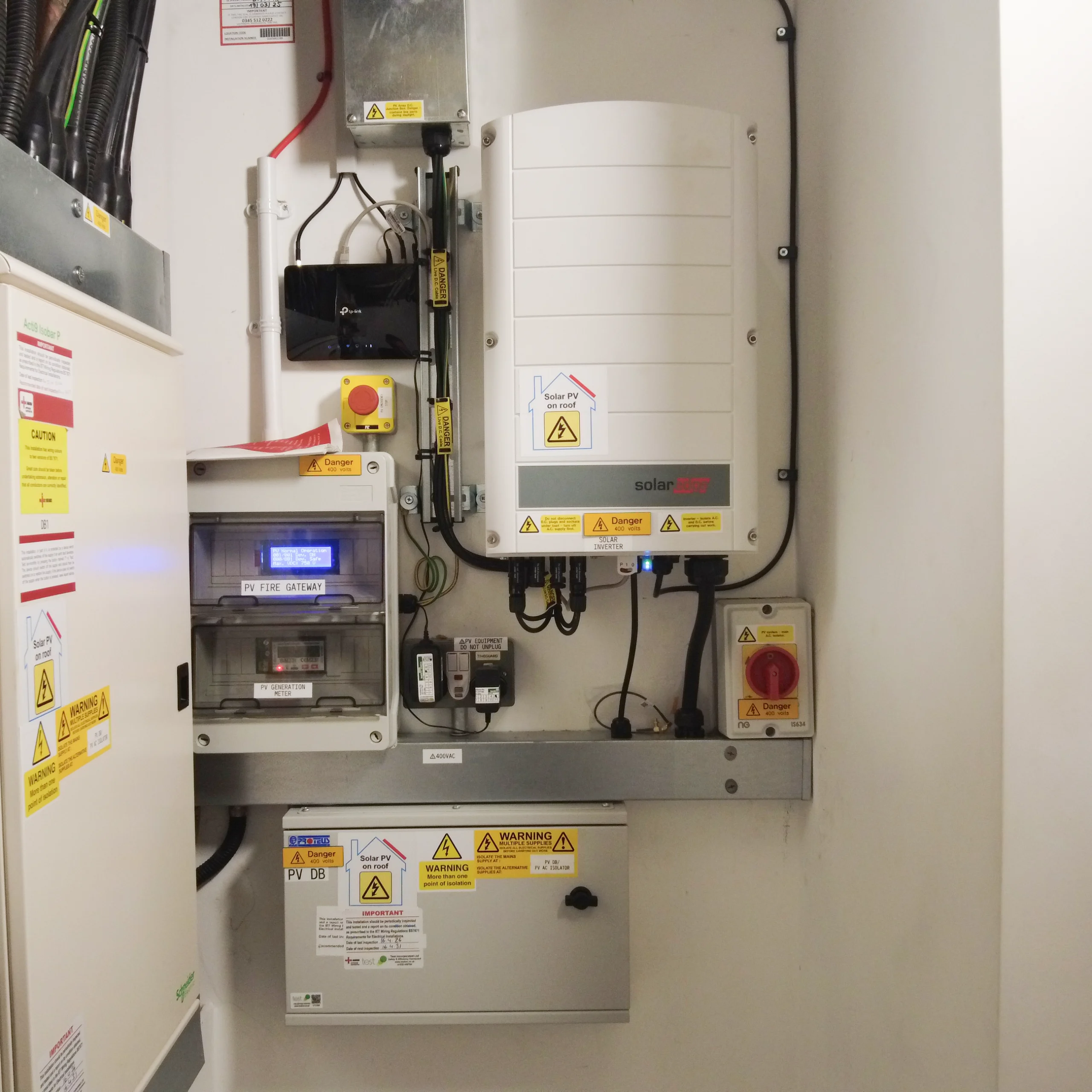

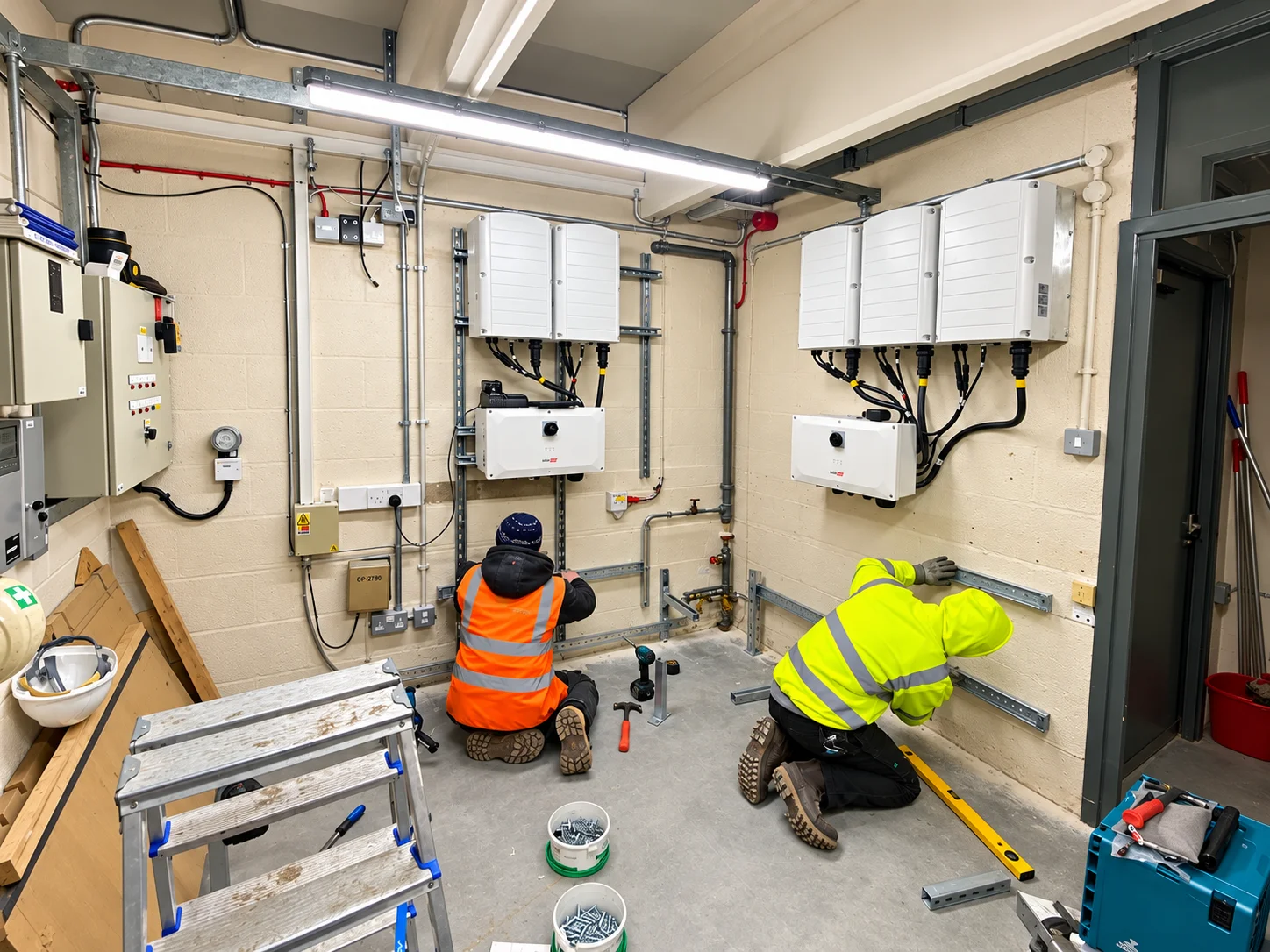

Honeypot Lane Health Centre Inverter

DMEGC Magnetic Co. Ltd., DM500M10RT-B60HBT × 46

  • Bifacial Design: Generates energy from both sides of the module.
  • Glass / Glass Construction: Durable design with strong fire performance.
  • Excellent Low-Light Performance: Maintains generation in weaker light conditions.
  • Low Temperature Coefficient: Helps maintain output in warmer weather.
  • High Efficiency: Designed for strong commercial Solar PV performance.
  • Long-Term Warranty: Backed by comprehensive product and performance warranties.
  • Certified Quality: Manufactured to recognised international standards.

Module Specifications:

  • Power: 500W
  • Module Type: Bifacial, glass / glass
  • Quantity: 46
  • Total DC Capacity: 23 kWp

SolarEdge SE20K Inverter × 1

  • 20kW Three-Phase Inverter: Designed for commercial Solar PV systems.
  • High Efficiency: Converts DC solar energy into usable AC electricity.
  • SolarEdge Optimiser Compatible: Works with power optimisers for improved system performance.
  • Advanced Monitoring: Provides detailed system and performance data.
  • Enhanced Safety: Supports SolarEdge safety features and automatic voltage reduction.
  • Commercial Design: Suitable for larger rooftop Solar PV installations.

Inverter Specifications:

  • Rated AC Power: 20kW
  • Phase: Three-phase
  • Quantity: 1
  • System: SolarEdge commercial PV

SolarEdge S500 Power Optimiser × 46

  • Module-Level Optimisation: Helps each solar panel operate at its best.
  • 500W Input Rating: Suitable for the 500W modules used on the system.
  • Improved Energy Yield: Reduces the impact of mismatch and partial shading.
  • Module-Level Monitoring: Provides detailed performance data for each panel.
  • Enhanced Safety: Supports SolarEdge SafeDC™ automatic voltage reduction.
  • Commercial & Residential Use: Designed for reliable long-term PV operation.

Optimiser Specifications:

  • Model: S500
  • Quantity: 46
  • Maximum Input Power: 500W
  • Maximum Input Current: 15A

Project Planning & Preparation

Delivering the 23 kWp Solar PV installation at Honeypot Lane Health Centre required careful planning, coordination and safety management to ensure the works were completed safely within a live healthcare environment.

Planning and Safety

Planning & Safety

Works planned around a live healthcare site

Detailed RAMS and site coordination

Careful programme management

Safety Management

Safety Management

Safe roof access arrangements

Working-at-height controls

Ongoing site safety management

Engineering

Engineering

Rooftop layout and structural assessment

SolarEdge system design

Electrical and DNO coordination

Delivery

Delivery

46 solar panels installed

Materials and access carefully coordinated

Full testing and commissioning completed

Environmental Impact

  • 4 Tonnes CO₂ Emissions Avoided
  • 167 Equivalent Environmental Benefit

Installation & Description of Works

A 23 kWp rooftop Solar PV system designed, installed and commissioned at Honeypot Lane Health Centre for CLCH, with the works carefully coordinated around a live healthcare environment.

Solar PV Array Icon

Solar PV Array

46 × DMEGC 500W solar modules installed across the rooftop to generate clean renewable electricity on site.

Electrical Infrastructure

Electrical Infrastructure

1 × SolarEdge SE20K three-phase inverter installed with new DC/AC cabling and associated electrical connections.

Monitoring and Safety

Monitoring & Safety

46 × SolarEdge S500 power optimisers provide module-level optimisation, detailed monitoring and enhanced system safety.

Planning & Design

Testing & Compliance

Full testing and commissioning completed in line with BS 7671, SolarEdge, DNO and relevant site requirements.

“

Delivering the Solar PV installation at Honeypot Lane Health Centre was another great project for the team. Working within a live healthcare environment required careful planning and coordination throughout. The finished system will help the site generate more of its own renewable electricity, reduce carbon emissions and support CLCH’s wider sustainability goals.

– Dave Houston

Director, Genfit

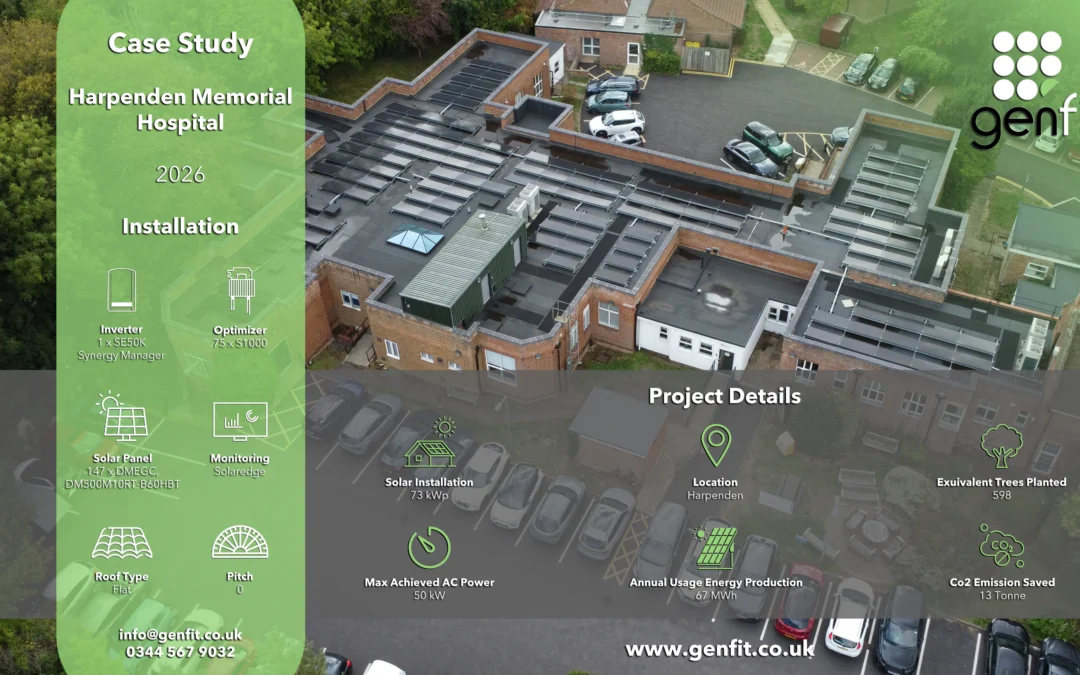

Harpenden Memorial Hospital

Harpenden Memorial Hospital

Project Overview

Genfit completed a rooftop Solar PV installation at Harpenden Memorial Hospital, delivered for Central London Community Healthcare NHS Trust (CLCH).

The project involved the installation of a new Solar PV system across the hospital roof, designed to generate clean renewable electricity directly on site and help reduce the building’s reliance on grid-supplied energy.

By making use of available roof space, the installation provides the hospital with a long-term renewable energy asset while supporting CLCH’s wider sustainability and carbon reduction objectives.

The completed system will help lower carbon emissions, improve on-site energy generation and contribute towards a more sustainable healthcare estate.

Harpenden Memorial Hospital
Harpenden Memorial Hospital

Project Details

Location
Harpenden
Client
CLCH
System Size
73 kWp
Annual Generation
67 MWh
CO₂ Savings
13 Tonnes
Panels Installed
147

System Design & Technology

The installation utilises a SolarEdge commercial PV system, designed to provide high-efficiency energy conversion, module-level optimisation and detailed system monitoring.

Green Tick 1 × SolarEdge SE50K Synergy Manager inverter provides 50 kW maximum AC power and efficient three-phase conversion across the system.

Green Tick 75 × SolarEdge S1000 power optimisers help maximise module performance while providing detailed module-level monitoring.

Green Tick 147 DMEGC solar panels make up the 72.86 kWp system, including 131 × 500W modules and 16 × 460W modules.

Green Tick Advanced SolarEdge monitoring and safety features provide real-time system visibility, optimiser-level performance data and enhanced DC safety.

The system is designed to generate approximately 67.32 MWh of renewable electricity each year, saving around 13 tonnes of CO₂ annually.

Harpenden Hospital Inverter

Hengdian Group DMEGC Magnetic Co. Ltd. Solar Modules × 147

131 × DM500M10RT-B60HBT
16 × DM460G12RT-B48HBT

  • High-Efficiency Modules: Designed for strong commercial Solar PV performance.
  • Bifacial / Advanced Cell Technology: Helps maximise energy generation across the array.
  • Excellent Low-Light Performance: Maintains generation in weaker light conditions.
  • Low Temperature Coefficient: Helps reduce performance losses in warmer weather.
  • Durable Construction: Built for long-term rooftop use and demanding environments.
  • Long-Term Warranty: Backed by comprehensive product and performance warranties.
  • Certified Quality: Manufactured to recognised international standards.

Module Specifications:

  • Total Modules: 147
  • 500W Modules: 131
  • 460W Modules: 16
  • Total Installed DC Power: 72.86 kWp

SolarEdge SE50K Synergy Manager × 1

  • 50kW Three-Phase Inverter: Designed for commercial Solar PV systems.
  • Synergy Technology: Provides flexible, efficient system operation.
  • High Efficiency: Converts DC power into usable AC electricity.
  • Advanced Monitoring: Works with SolarEdge optimisers for detailed performance data.
  • Integrated Safety: Includes DC safety switch and surge protection.
  • Commercial Design: Built for larger rooftop Solar PV installations.

Inverter Specifications:

  • Rated AC Power: 50kW
  • Phase: Three-phase
  • Technology: SolarEdge Synergy
  • Quantity: 1

Solaredge S1000 x 75

  • Manufacturer’s Warranty: 25 years
  • Specifically designed to work with SolarEdge Commercial inverters
  • Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
  • Faster installations with simplified cable management and easy assembly
    using a single bolt
  • Detects abnormal PV connector behavior, preventing potential safety issues
  • Module-level voltage shutdown for installer and firefighter safety
  • Flexible system design for maximum space utilization
  • Compatible with bifacial PV modules
  • Superior efficiency (99.5%)

Project Planning & Preparation

Delivering the Solar PV installation at Harpenden Memorial Hospital required careful planning, coordination and safety management to complete the works within an active healthcare environment while minimising disruption to day-to-day operations.

Planning and Safety

Planning & Safety

Works planned around a live healthcare site

Detailed RAMS and site coordination

Careful programme management

Safety Management

Safety Management

Safe roof access arrangements

Working-at-height controls

Ongoing site safety management

Engineering

Engineering

Structural and rooftop layout assessment

SolarEdge system design

Electrical and grid connection coordination

Delivery

Delivery

Materials and access carefully coordinated

Minimal disruption to hospital operations

Full testing and commissioning completed

Environmental Impact

  • 13 Tonnes CO₂ Emissions Avoided
  • 598 Equivalent Environmental Benefit

Installation & Description of Works

A 72.86 kWp rooftop Solar PV system designed, installed and commissioned at Harpenden Memorial Hospital for CLCH, with the works carefully coordinated around a live healthcare environment.

Solar PV Array Icon

Solar PV Array

147 DMEGC solar modules installed across the hospital roof to generate clean renewable electricity on site.

Electrical Infrastructure

Electrical Infrastructure

1 × SolarEdge SE50K Synergy Manager installed alongside new DC/AC cabling and associated electrical connections.

Monitoring and Safety

Monitoring & Safety

75 × SolarEdge S1000 power optimisers provide detailed system monitoring, module-level optimisation and enhanced safety.

Planning & Design

Testing & Compliance

Full testing and commissioning completed in line with BS 7671, SolarEdge, DNO and relevant site requirements.

“

Delivering the Solar PV installation at Harpenden Memorial Hospital was a great project for the team. Working within a live healthcare environment meant careful planning and coordination were essential throughout. The finished system will help the site generate more of its own renewable electricity, reduce carbon emissions and support CLCH’s wider sustainability goals.

– Dave Houston

Director, Genfit

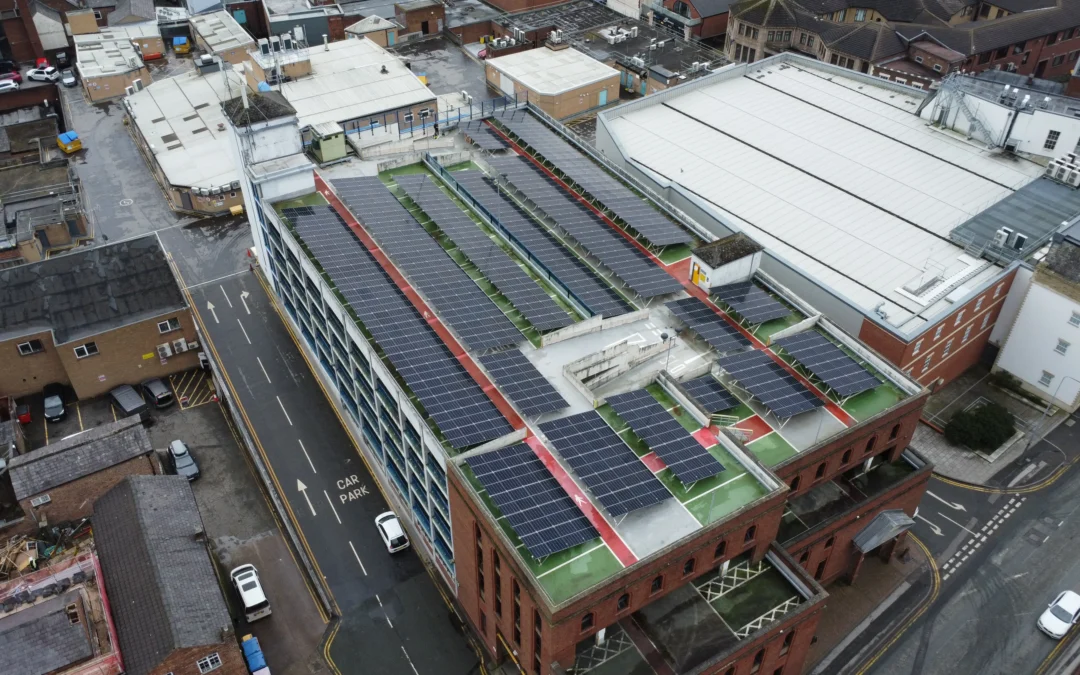

Grosvenor and Jordansgate Car Park

Grosvenor and Jordansgate Car Park

Project Overview

Genfit completed the installation of two solar PV systems at Jordangate and Grosvenor Multi-Storey Car Parks in Macclesfield, transforming the upper parking levels into renewable energy generation assets.

The project involved the installation of ground-mounted solar PV systems across the top levels of both multi-storey car parks, designed to make effective use of available space while supporting the generation of clean, renewable electricity.

With a combined 986 solar panels and a total installed capacity of 400 kWp, the two systems are designed to generate approximately 330 MWh of renewable electricity annually, helping to reduce reliance on grid electricity and support long-term sustainability objectives.

Together, the installations are estimated to save approximately 64 tonnes of CO₂ emissions annually, equivalent to planting 2,912 trees, demonstrating how existing urban infrastructure can be used to generate renewable energy and reduce environmental impact.

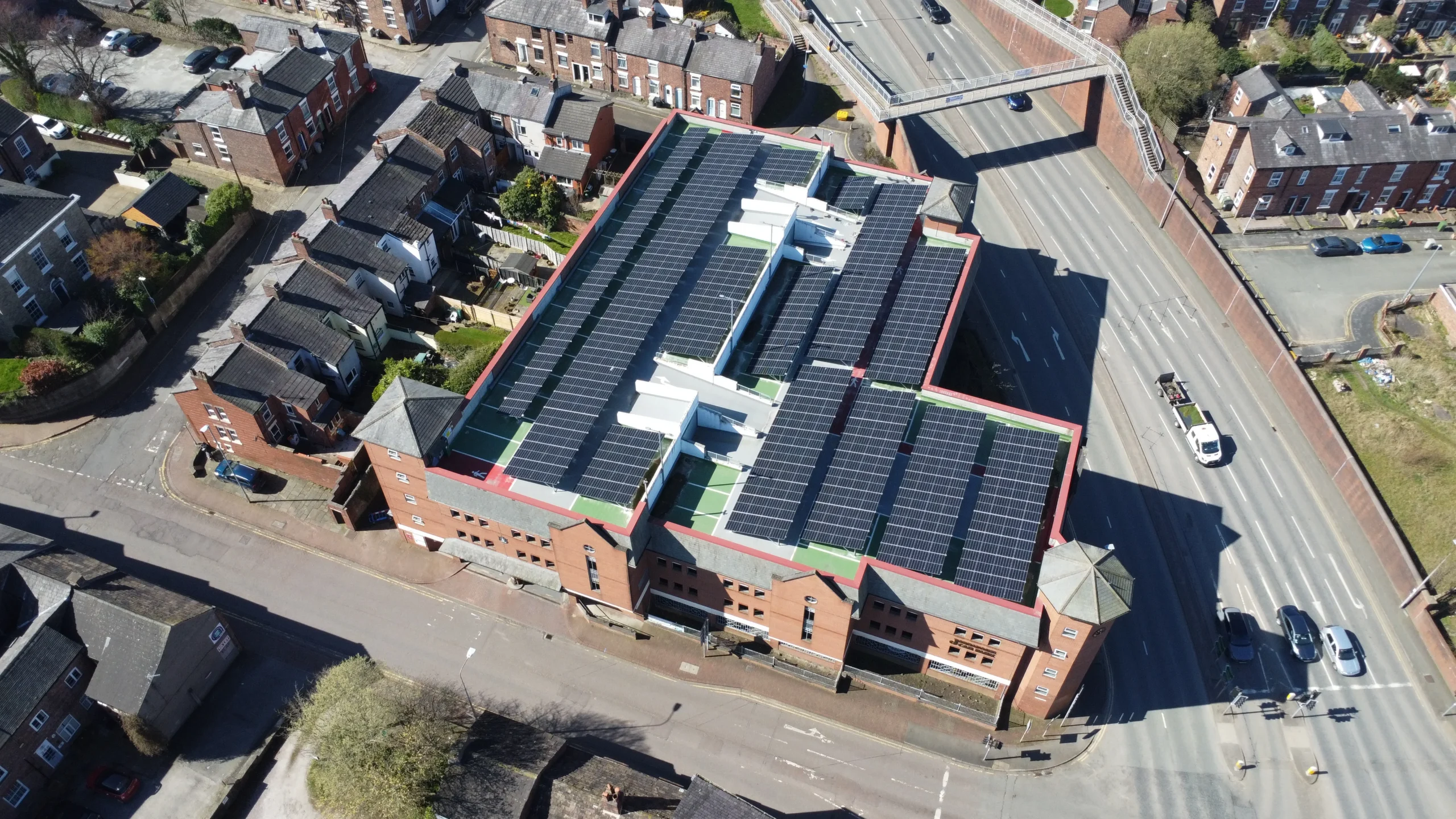

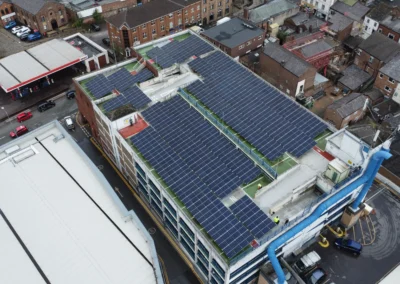

Grosvenor Car Park Solar PV Installation

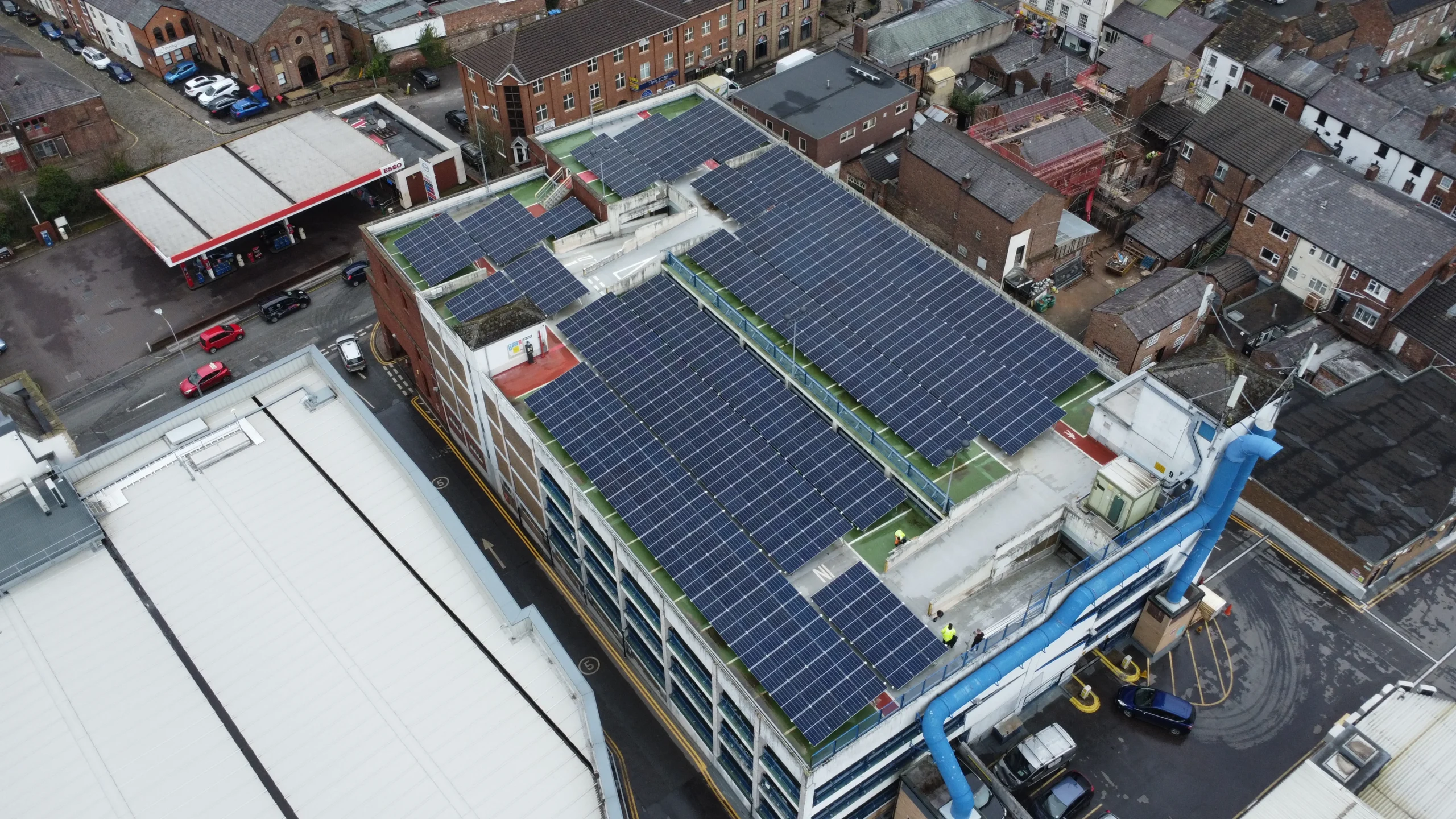

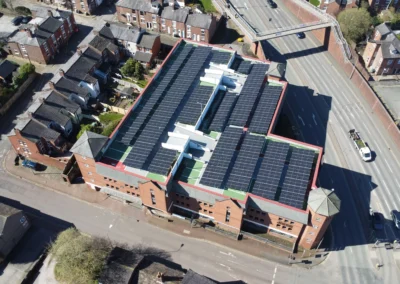

Jordansgate Car Park Solar Installation

Project Details

Location
Macclesfield
Client
Equans
System Size
400 kWp
Annual Generation
330 MWh
CO₂ Savings
64 Tonnes
Panels Installed
986

System Design & Technology

The installations utilise SolarEdge commercial PV technology, combined with specially designed ground-mounted systems positioned on the upper levels of Jordangate and Grosvenor Multi-Storey Car Parks. The systems were designed to maximise renewable energy generation while making effective use of existing urban infrastructure.

Green Tick 4 SolarEdge inverters and 494 power optimisers help maximise energy generation and ensure efficient performance across both installations.

Green Tick Combined installed capacity of 399.34 kWp, with a maximum achieved AC power of 306.5 kW, converting solar energy into usable electricity.

Green Tick Advanced SolarEdge monitoring technology provides detailed system performance data, allowing energy generation and individual panel performance to be monitored.

Green Tick Enhanced safety features, including module-level monitoring and SolarEdge SafeDC™ technology, help reduce DC voltage to safer levels when the systems are shut down.

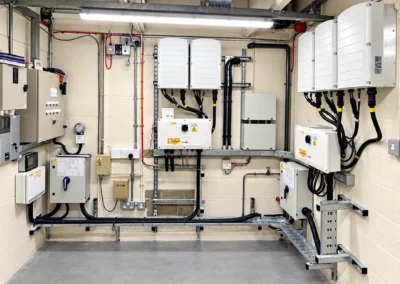

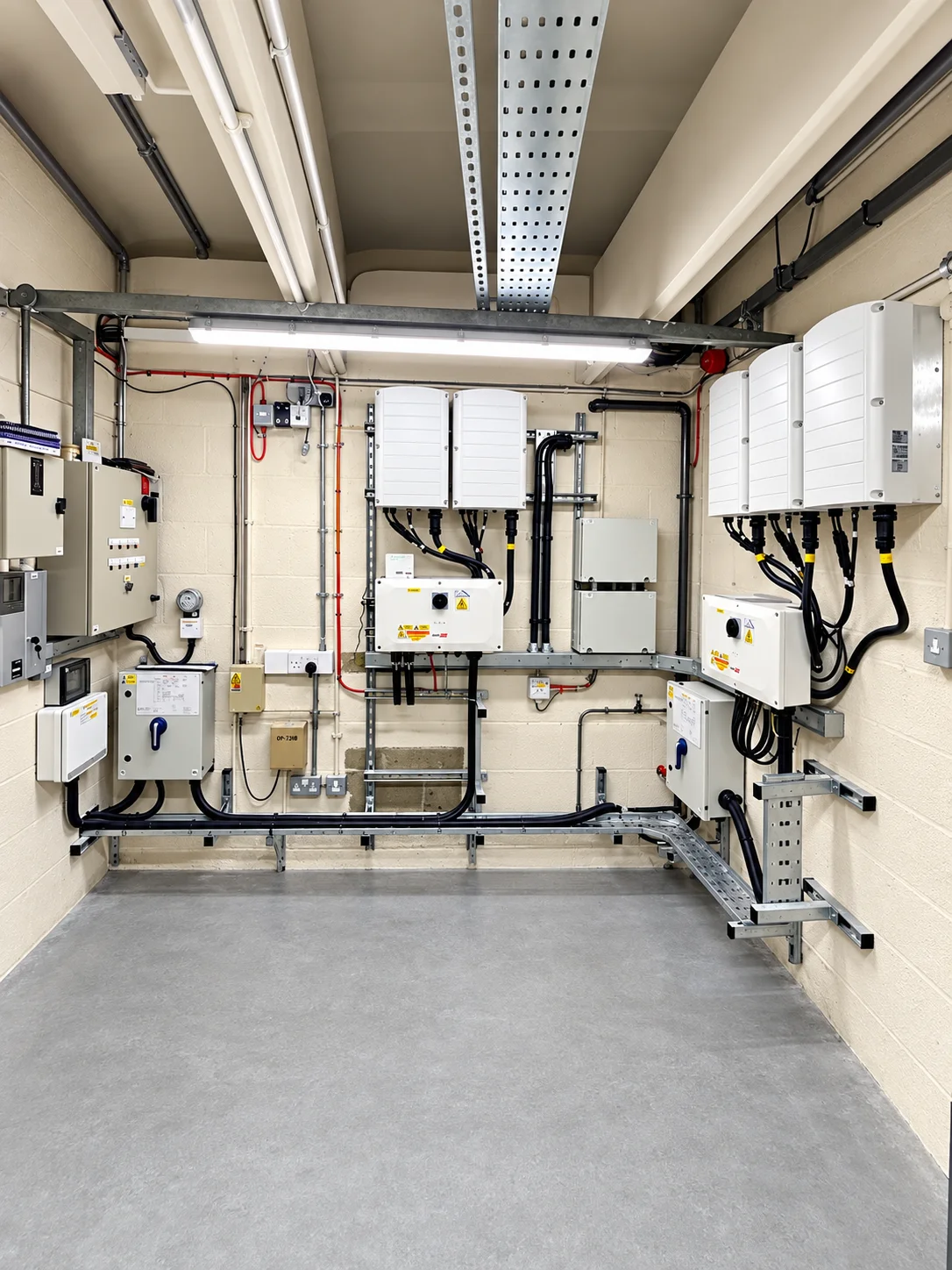

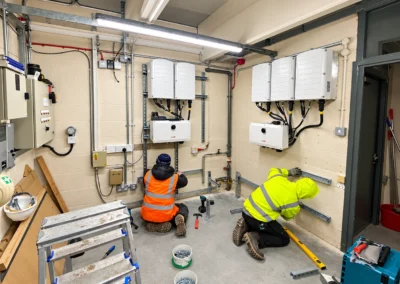

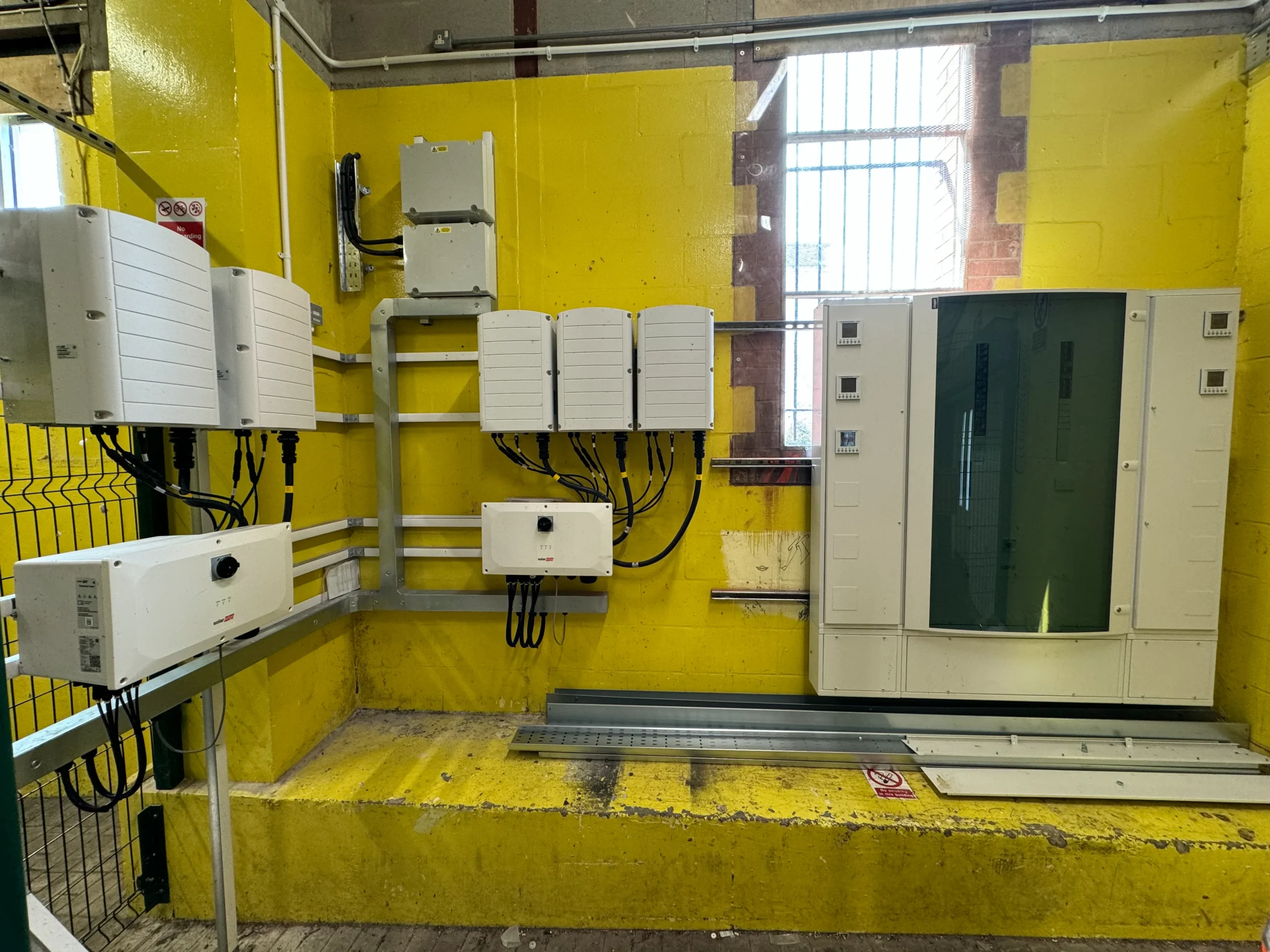

Jordansgate Car Park Inverters
Jordansgate Car Park Inverters

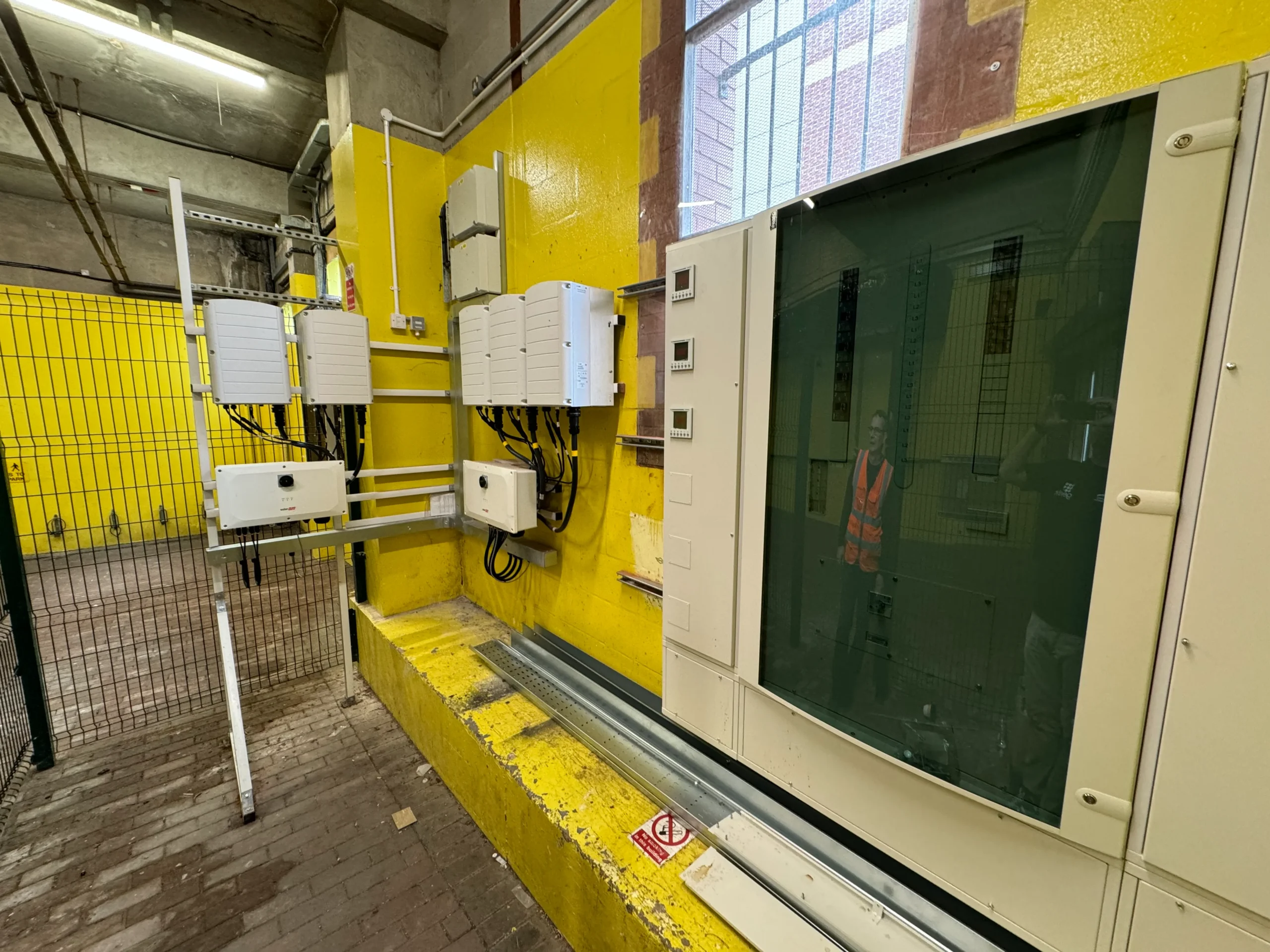

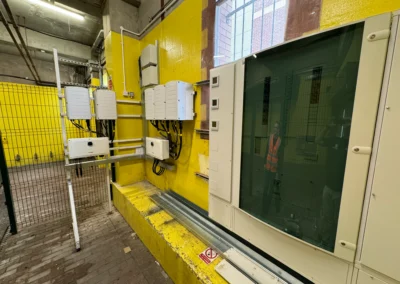

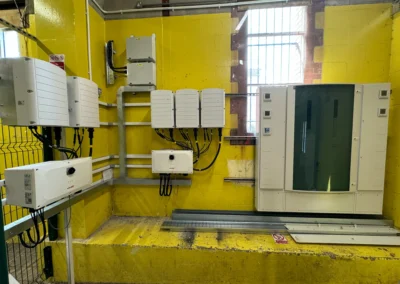

Grosvenor Car Park Inverters
Grosvenor Car Park Inverters

LONGi Solar – LR5-54HPB-405M

  • High Efficiency: Half-cut cell technology for improved performance.

  • All-Black Design: Sleek, modern appearance.

  • Low-Light Performance: Reliable output in reduced sunlight.

  • Temperature Performance: Maintains efficiency in warmer conditions.

  • 12-Year Warranty: Manufacturer product protection.

  • 25-Year Power Warranty: Long-term performance guarantee.

  • Durable Construction: Tempered glass and aluminium frame.

Module Specifications:

  • Rated Power: 405W

  • Efficiency: 20.7%

  • Weight: 20.8 kg

  • Dimensions: 1722 × 1134 × 30 mm

  • Cells: 108 half-cut cells

  • Temperature Coefficient: -0.34%/°C

SolarEdge SE50K & SE100K – Synergy Technology Inverters

  • High Efficiency: Up to 98.3% conversion efficiency.

  • Synergy Technology: Modular design for improved performance.

  • Smart Monitoring: Real-time system performance tracking.

  • Enhanced Safety: Built-in arc fault protection.

  • Easy Maintenance: Simplified servicing and diagnostics.

  • Weather Resistant: IP65-rated for outdoor installation.

  • 12-Year Warranty: Manufacturer-backed protection.

Inverter Specifications:

  • Rated AC Power: 50 kW / 100 kW

  • Max Efficiency: Up to 98.3%

  • Max DC Voltage: 1,000 V

  • Synergy Units: 2 (SE50K) / 3 (SE100K)

  • Synergy Manager: 1 per inverter

  • Protection Rating: IP65

  • Grid Connection: Three-phase

SolarEdge P950 – Power Optimiser

  • High Efficiency: Up to 99.5% efficiency.

  • Power Optimisation: Maximises energy from each panel.

  • Dual Panel Support: Connects two solar panels.

  • Smart Monitoring: Individual panel performance tracking.

  • Enhanced Safety: SafeDC™ voltage shutdown technology.

  • Weather Resistant: IP68-rated for outdoor conditions.

  • 25-Year Warranty: Long-term manufacturer protection.

Optimiser Specifications:

  • Rated Input Power: 950W

  • Max Efficiency: 99.5%

  • Max Input Voltage: 125V DC

  • MPPT Range: 12.5–105V DC

  • Max Output Voltage: 80V DC

  • Protection Rating: IP68

  • Weight: 1.064 kg

  • Dimensions: 129 × 162 × 59 mm

Project Planning & Preparation

Delivering the combined 399.34 kWp solar PV installations at Jordangate and Grosvenor Multi-Storey Car Parks required careful planning, engineering coordination and safety management.

With both systems installed on the upper levels of existing multi-storey car parks, particular consideration was given to structural loading, mounting system design, working at height and the safe delivery of materials, alongside minimising disruption to car park operations.

Planning and Safety

Planning & Safety

Two multi-storey car park installations

Site surveys and project coordination

Installation sequencing and access planning

Safety Management

Safety Management

Existing perimeter edge protection

Safe working areas and access management

Site-specific RAMS and risk assessments

Engineering

Engineering

Structural loading considerations

Ground-mounted PV systems at roof level

Mounting design and electrical integration

Delivery

Delivery

Material lifting and logistics planning

Coordination of site access and work areas

System commissioning and testing

Environmental Impact

  • 64 Tonnes CO₂ Emissions Avoided
  • 2912 Equivalent Environmental Benefit

Installation & Description of Works

Genfit designed, installed and commissioned two ground-mounted solar PV systems across the upper levels of Jordangate and Grosvenor Multi-Storey Car Parks in Macclesfield. With a combined capacity of 399.34 kWp, the installations transform existing car park infrastructure into renewable energy generation assets.

Solar PV Array Icon

Solar PV Array

986 LONGi solar panels installed across both car parks using ground-mounted support structures positioned on the upper parking levels.

Electrical Infrastructure

Electrical Infrastructure

4 SolarEdge Synergy inverters and 494 power optimisers, supported by DC/AC cabling and electrical connections to the existing site infrastructure.

Monitoring and Safety

Monitoring & Safety

SolarEdge monitoring technology provides detailed performance tracking, while integrated safety features support safe and reliable system operation.

Planning & Design

Testing & Compliance

Full system testing and commissioning, including electrical verification and compliance with BS 7671 and applicable DNO connection requirements.

“

Completing these two solar installations at Jordangate and Grosvenor Multi-Storey Car Parks is something we're really proud of. Installing ground-mounted solar systems on top of existing car parks presented a unique opportunity to make better use of urban space. With a combined capacity of nearly 400 kWp, it's a great example of how existing infrastructure can be transformed to generate clean energy, reduce carbon emissions and support a more sustainable future.

– Dave Houston

Director, Genfit

Capital City Academy

Capital City Academy

Project Overview

Genfit completed a 300 kWp rooftop Solar PV installation at Capital City Academy in London in April 2022.

The project involved the installation of 659 LONGi Solar panels, creating a large rooftop renewable energy system designed to generate clean electricity directly on-site and reduce the Academy’s reliance on grid-supplied energy.

The system is estimated to generate approximately 263.08 MWh of renewable electricity each year, helping Capital City Academy reduce its annual carbon emissions by around 60 tonnes of CO₂.

The installation also included SolarEdge P950 power optimisers, alongside two SolarEdge 100 kW three-phase inverters and a SolarEdge 33.3 kW three-phase inverter, helping maximise system performance and provide enhanced monitoring across the installation.

Delivered over a two-week period, the project provides Capital City Academy with a long-term renewable energy asset while supporting its wider sustainability and carbon reduction goals.

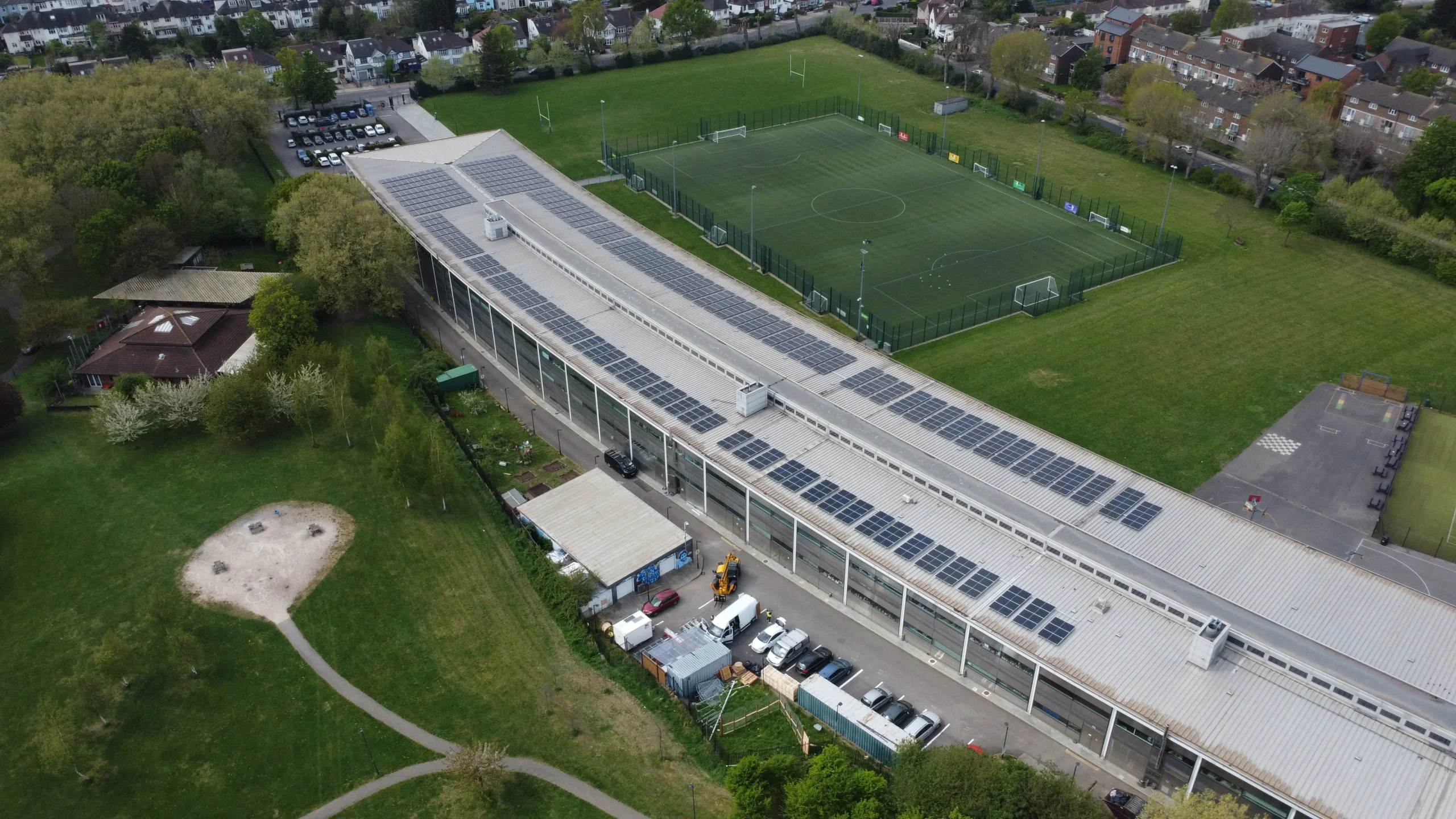

Capital City Academy

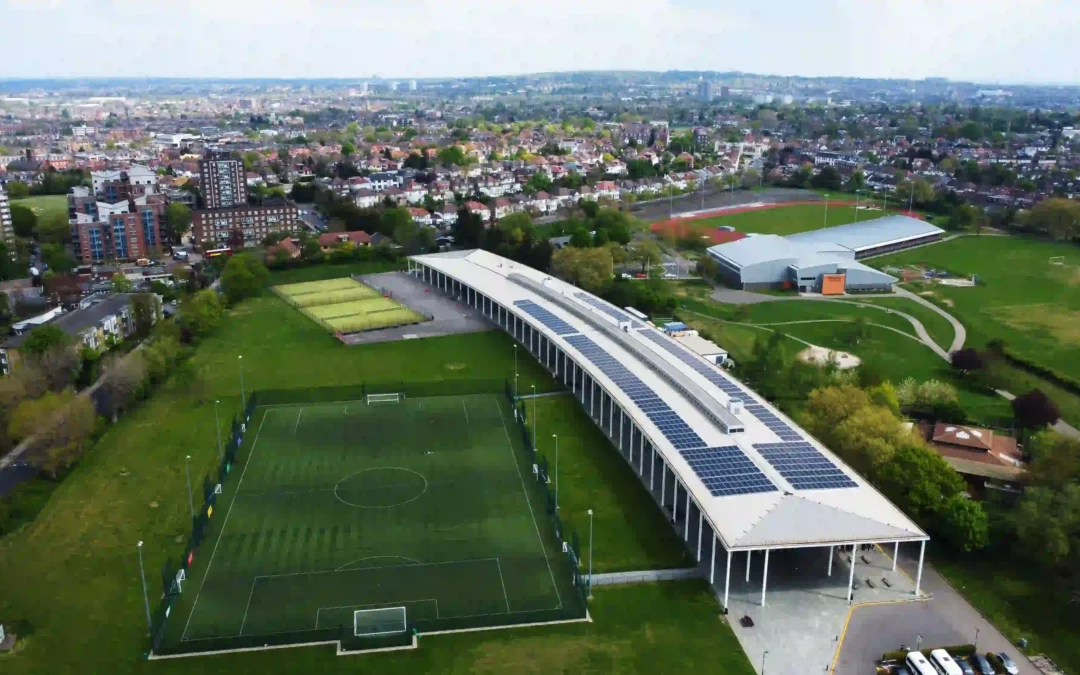

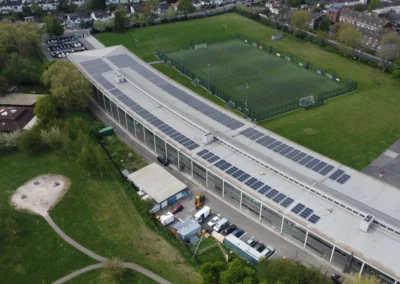

Aerial view of a solar-paneled building beside green soccer fields enclosed by a fence and a surrounding park and housing area.

Project Details

Location
London
Client
Brent Pure Energy
System Size
300 kWp
Annual Generation
260 MWh
CO₂ Savings
50 Tonnes
Panels Installed
659

System Design & Technology

The installation utilises a SolarEdge commercial PV system, selected for its advanced monitoring, module-level optimisation and enhanced safety features.

Green Tick 2 × SolarEdge SE100K Synergy Manager inverters and 1 × SE33.3K inverter, providing efficient three-phase conversion across the system.

Green Tick 330 × SolarEdge P950 power optimisers, helping maximise the performance of the 659 solar panels across the rooftop array.

Green Tick Module-level monitoring provides detailed performance information and helps identify any individual panel or optimiser issues.

Green Tick Enhanced SolarEdge safety features, including rapid voltage reduction and integrated DC safety functionality, help improve system safety during operation and maintenance.

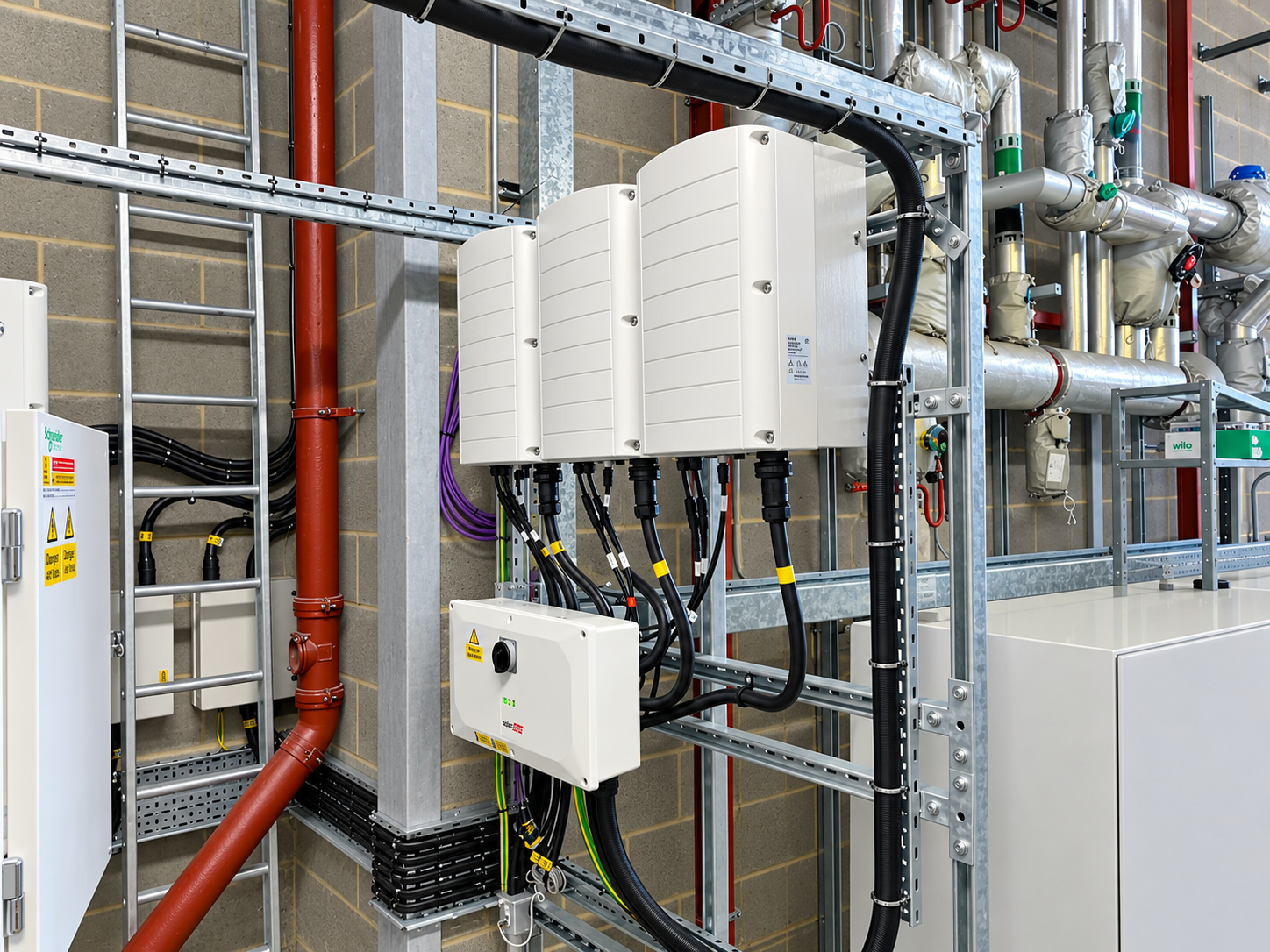

Capital City Academy Inverters

LONGi Solar, LR4-72HPH-455M × 659

  • Half-Cell Design: Improves efficiency and helps reduce heat losses.
  • 455W Output: Strong performance for commercial rooftop systems.
  • Shading Performance: Helps maintain output during partial shading.
  • Positive Power Tolerance: 0 to +3% output tolerance.
  • Low Degradation: Designed for strong long-term performance.
  • 25-Year Power Warranty: Long-term output protection.
  • Durable Construction: Tempered glass with aluminium frame.
  • IP68 Junction Box: High protection against dust and moisture.

Module Specifications:

  • Power: 455W
  • Max Efficiency: 20.9%
  • Weight: 24.3kg
  • Dimensions: 2094mm × 1038mm × 35mm
  • Cell Configuration: 144 half-cells

SolarEdge SE100K Synergy Manager × 2

  • 100kW Three-Phase Inverter: Designed for large commercial Solar PV systems.
  • Synergy Technology: Uses multiple units for flexible system design.
  • High Efficiency: Converts DC power efficiently for site use.
  • Module-Level Monitoring: Works with SolarEdge optimisers for detailed performance data.
  • Built-In Safety Features: Includes DC safety and system protection functions.
  • Commercial Design: Suited to large rooftop installations.

Inverter Specifications:

  • Rated AC Power: 100kW
  • Phase: Three-phase
  • Quantity: 2

SolarEdge SE33.3K × 1

  • 33.3kW Three-Phase Inverter: Provides efficient conversion for smaller sections of the array.
  • High Efficiency: Designed to maximise Solar PV energy conversion.
  • Module-Level Monitoring: Works with SolarEdge optimisers for detailed system visibility.
  • Enhanced Safety: Includes integrated SolarEdge safety features.
  • Commercial Design: Suitable for larger commercial PV installations.

Inverter Specifications:

  • Rated AC Power: 33.3kW
  • Phase: Three-phase
  • Quantity: 1

SolarEdge P950 Power Optimiser × 330

  • Module-Level Optimisation: Helps each pair of panels operate efficiently.
  • 2:1 Configuration: One optimiser connects to two PV modules.
  • Improved Energy Yield: Reduces the impact of mismatch and shading.
  • Module-Level Monitoring: Provides detailed performance visibility.
  • Enhanced Safety: Supports SolarEdge SafeDC™ voltage reduction.
  • Commercial Design: Built for large-scale rooftop PV systems.

Optimiser Specifications:

  • Model: P950
  • Quantity: 330
  • Configuration: 2 panels per optimiser
  • Rated Input Power: 950W

Project Planning & Preparation

Delivering the 300 kWp Solar PV installation at Capital City Academy required careful planning and coordination to complete the works safely within an active education environment. The project was delivered over a two-week programme, with close coordination between the site team, Academy and project stakeholders.

Planning and Safety

Planning & Safety

Two-week installation programme

Works coordinated around the Academy

Detailed RAMS and site planning

Safety Management

Safety Management

Safe roof access arrangements

Working-at-height controls

Daily site safety management

Engineering

Engineering

Rooftop layout and system design

SolarEdge electrical design

DNO and grid connection coordination

Delivery

Delivery

659 panels installed

Materials and access carefully coordinated

Full testing and commissioning completed

Environmental Impact

  • 50 Tonnes CO₂ Emissions Avoided
  • 2310 Equivalent Environmental Benefit

Installation & Description of Works

A 300 kWp rooftop Solar PV system designed, installed and commissioned at Capital City Academy in London. The system was completed over a two-week programme and integrated with the Academy’s existing electrical infrastructure.

Solar PV Array Icon

Solar PV Array

659 LONGi Solar 455W modules installed across the Academy rooftop to generate clean renewable electricity on site.

Electrical Infrastructure

Electrical Infrastructure

2 × SolarEdge SE100K Synergy Managers and 1 × SE33.3K inverter, with new DC/AC cabling and associated electrical connections.

Monitoring and Safety

Monitoring & Safety

330 × SolarEdge P950 power optimisers provide module-level optimisation and detailed system monitoring.

Planning & Design

Testing & Compliance

Full testing and commissioning completed to applicable BS 7671, DNO and SolarEdge requirements, ensuring safe and compliant operation.

“

Delivering the Solar PV installation at Capital City Academy was a great project for the team. Installing 659 panels across the Academy roof in just two weeks required careful planning and coordination, particularly while working within a live education environment. The finished 300 kWp system is a strong example of how schools and academies can use their roof space to generate clean energy, reduce carbon emissions and support their long-term sustainability goals.

– Dave Houston

Director, Genfit

Oak Lane Clinic

Oak Lane Clinic

Project Overview

Genfit completed a 46.64 kWp rooftop Solar PV installation at Oak Lane Clinic in 2024 for our client, Central London Community Healthcare NHS Trust (CLCH).

The project involved the installation of 88 solar panels, supported by 44 SolarEdge power optimisers and a 33.3 kW inverter, creating an efficient rooftop renewable energy system designed to generate clean electricity directly on site.

The system is expected to produce approximately 41.76 MWh of usable solar energy each year, helping Oak Lane Clinic reduce its reliance on grid electricity while supporting CLCH’s wider sustainability and carbon reduction objectives.

The installation is estimated to save approximately 8.08 tonnes of CO₂ emissions annually, equivalent to planting around 371 trees each year, making effective use of the available roof space while reducing the environmental impact of the clinic’s electricity consumption.

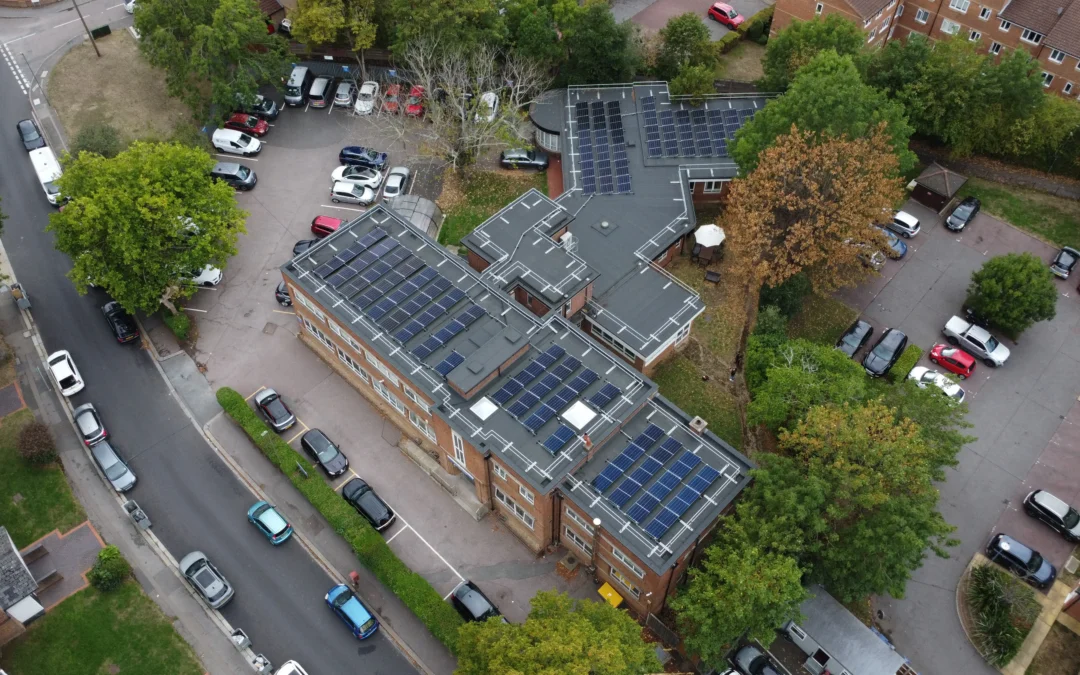

Aerial view of a brick building with extensive solar panels on its flat roof and surrounding street with cars and greenery nearby.
Aerial view of a brick building with extensive solar panels on the flat roofs, surrounded by parked cars and trees

Project Details

Location
London
Client
CLCH
System Size
47 kWp
Annual Generation
42 MWh
CO₂ Savings
8.08 Tonnes
Panels Installed
88

System Design & Technology

The installation utilises a SolarEdge PV system, selected for its advanced monitoring capabilities, module-level optimisation and enhanced safety features.

Green Tick 1 SolarEdge inverter and 44 power optimisers help maximise system performance across the 88-panel array.

Green Tick Maximum achieved AC power of 33.3 kW, efficiently converting the electricity generated by the PV array into usable power for the clinic.

Green Tick Advanced monitoring platform provides real-time performance data and detailed system insights, helping to identify any issues quickly.

Green Tick Enhanced safety features include module-level monitoring and SolarEdge SafeDC™ functionality, reducing DC voltage to a safer level when required.

Inverter at Oak Lane Clinic

LONGi Solar, LR5-66HTH-530M

  • High-Efficiency HPBC Technology: Helps maximise energy generation.
  • Strong Low-Light Performance: Performs well in lower irradiance.
  • Low Temperature Coefficient: Helps maintain output in warmer conditions.
  • Positive Power Tolerance: Rated at 0 to +3%.
  • Robust Construction: Tested for high wind and snow loads.
  • 15-Year Product Warranty: Cover for materials and workmanship.
  • 25-Year Power Warranty: Approx. 88.9% output at year 25.
  • IP68 Junction Box: Designed for long-term outdoor reliability.

Module Specifications:

  • Rated Power: 530 W
  • Max Efficiency: 22.3%
  • Weight: 26.0 kg
  • Dimensions: 2094 × 1134 × 35 mm
  • Cell Technology: Monocrystalline HPBC

SolarEdge SE33.3K Inverter × 1

  • 33.3 kW Three-Phase Output: Designed for commercial Solar PV systems.
  • High Efficiency: Maximum efficiency of around 98.3%.
  • SolarEdge Optimiser Compatible: Enables module-level optimisation and monitoring.
  • Advanced Monitoring: Provides real-time system performance data.
  • Enhanced Safety: Includes SolarEdge safety and shutdown functionality.
  • Flexible Communications: Supports Ethernet, RS485 and optional wireless connectivity.
  • IP65 Rated: Suitable for indoor or outdoor installation.
  • 12-Year Manufacturer’s Warranty: Extended warranty options available.

Specifications:

  • Rated AC Output: 33.3 kW
  • Maximum Efficiency: 98.3%
  • Three-Phase Inverter
  • Protection Rating: IP65
  • Weight: Approx. 32 kg
  • Dimensions: Approx. 540 × 315 × 260 mm

SolarEdge S1200 Power Optimiser

  • Designed for Commercial PV: Suitable for high-power modules and larger rooftop systems.
  • Module-Level Optimisation: Helps maximise energy generation from each panel pair.
  • Reduces Mismatch Losses: Helps limit losses from shading, soiling and module variation.
  • Module-Level Monitoring: Provides detailed performance visibility through SolarEdge monitoring.
  • SafeDC™ Functionality: Reduces DC voltage to a safer level when the system is shut down.
  • High Efficiency: Maximum efficiency of up to 99.5%.
  • Flexible System Design: Supports longer strings and efficient use of available roof space.
  • 25-Year Manufacturer’s Warranty: Designed for long-term system reliability.

Specifications:

  • Rated Input Power: Up to 1,200 W
  • Maximum Efficiency: 99.5%
  • Dual-Module Optimiser: Supports two PV modules per optimiser
  • Protection Rating: IP68
  • Suitable for: Commercial SolarEdge inverter systems

Project Planning & Preparation

Delivering this 5.12 MWp solar installation required extensive planning, design coordination, and safety management while keeping the distribution centre fully operational throughout the 20-week build programme. Genfit acted as both Principal Contractor and Principal Designer under CDM regulations.

Planning and Safety

Planning & Safety

Site-specific installation planning

Coordination around clinic operations

Full RAMS and site controls

Safety Management

Safety Management

Safe roof access

Working-at-height controls

Ongoing site safety checks

Engineering

Engineering

Structural and roof assessment

SolarEdge system design

Electrical and grid coordination

Delivery

Delivery

Coordinated material deliveries

Minimal disruption to the clinic

Full testing and commissioning

Environmental Impact

  • 8 Tonnes CO₂ Emissions Avoided
  • 370 Equivalent Environmental Benefit

Installation & Description of Works

A 5.12 MWp rooftop solar PV system designed, installed and commissioned while the distribution centre remained fully operational. The system integrates with the site’s electrical infrastructure, monitoring platform and grid compliance controls.

Solar PV Array Icon

Solar PV Array

88 LONGi Solar LR5-66HTH-530M modules installed across the available roof space to maximise on-site renewable energy generation.

Electrical Infrastructure

Electrical Infrastructure

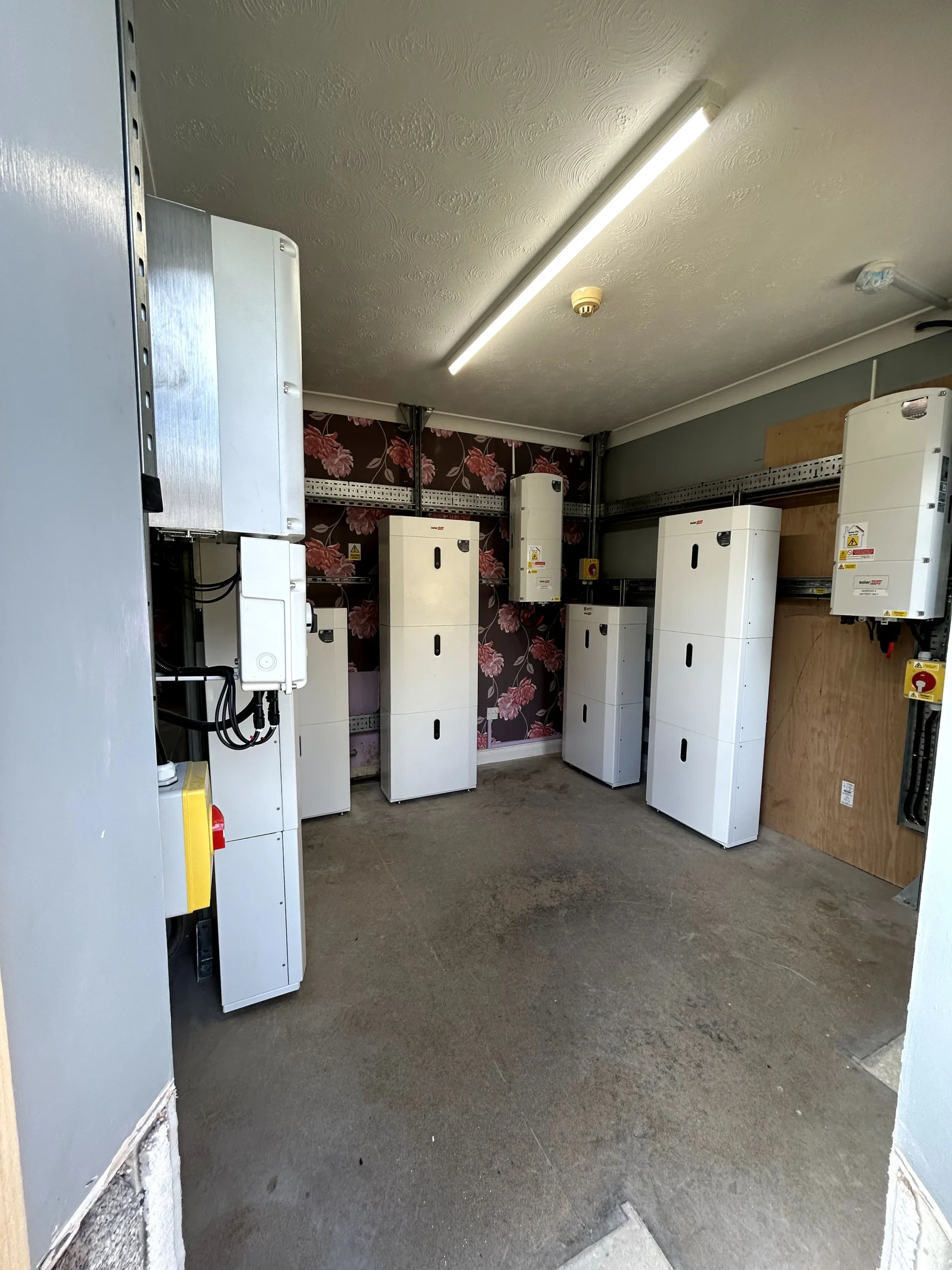

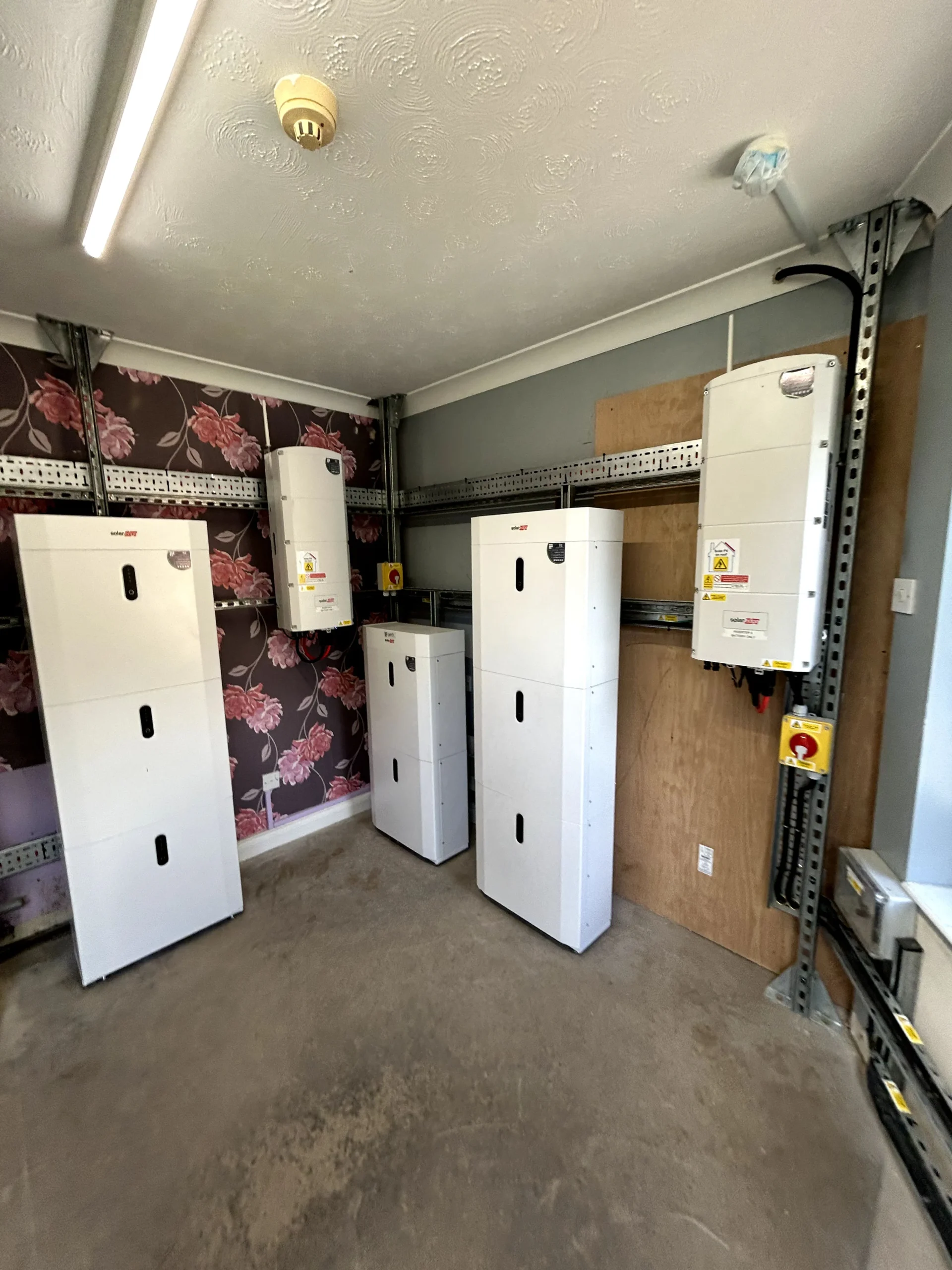

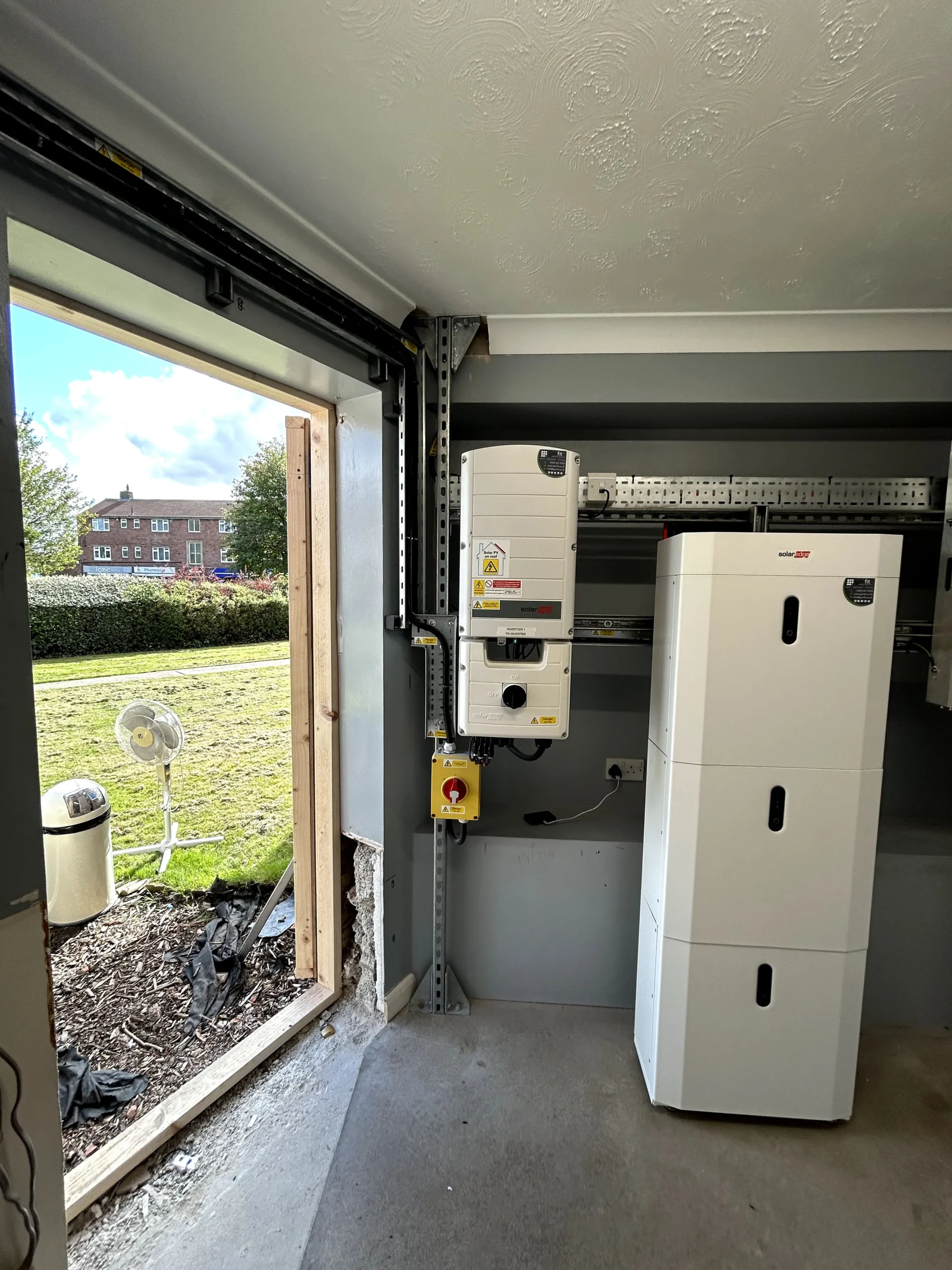

1 SolarEdge SE33.3K inverter and 44 S1200 power optimisers, with new DC/AC cabling integrated into the clinic’s existing electrical system.

Monitoring and Safety

Monitoring & Safety

SolarEdge monitoring provides real-time system performance and module-level visibility, alongside integrated SolarEdge safety features.

Planning & Design

Testing & Compliance

The complete Solar PV system was fully tested, commissioned and handed over ready for operation.

“

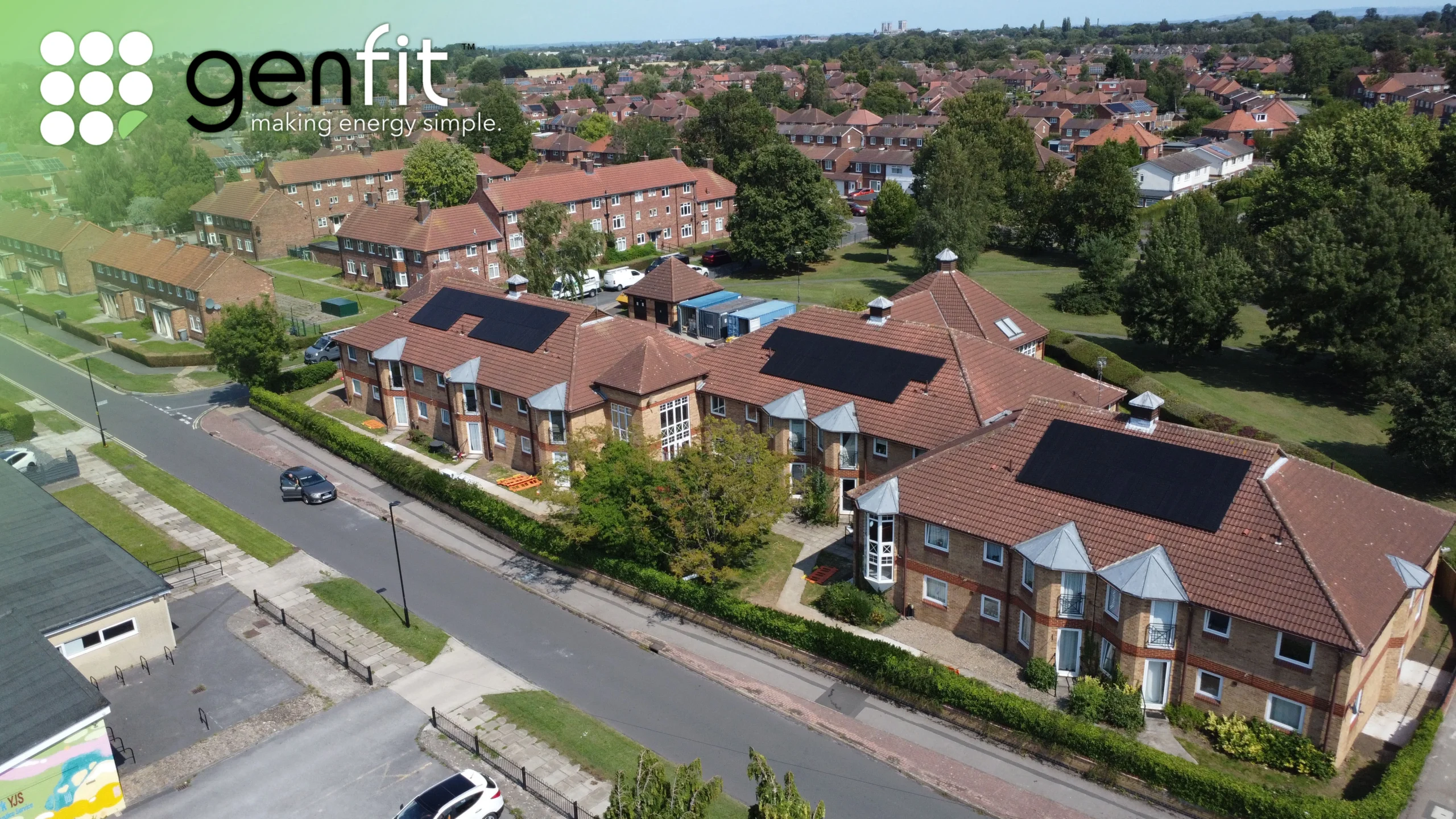

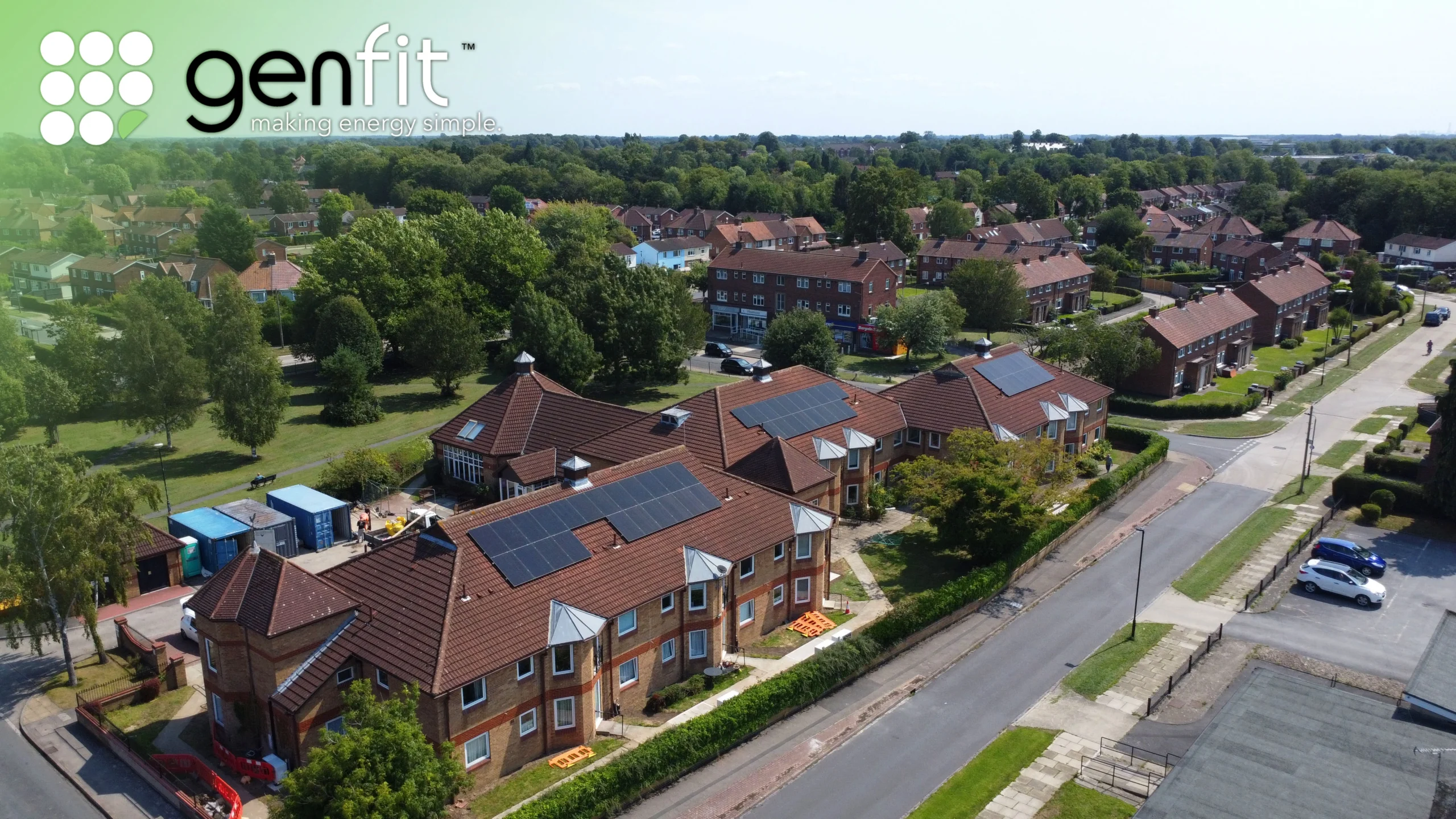

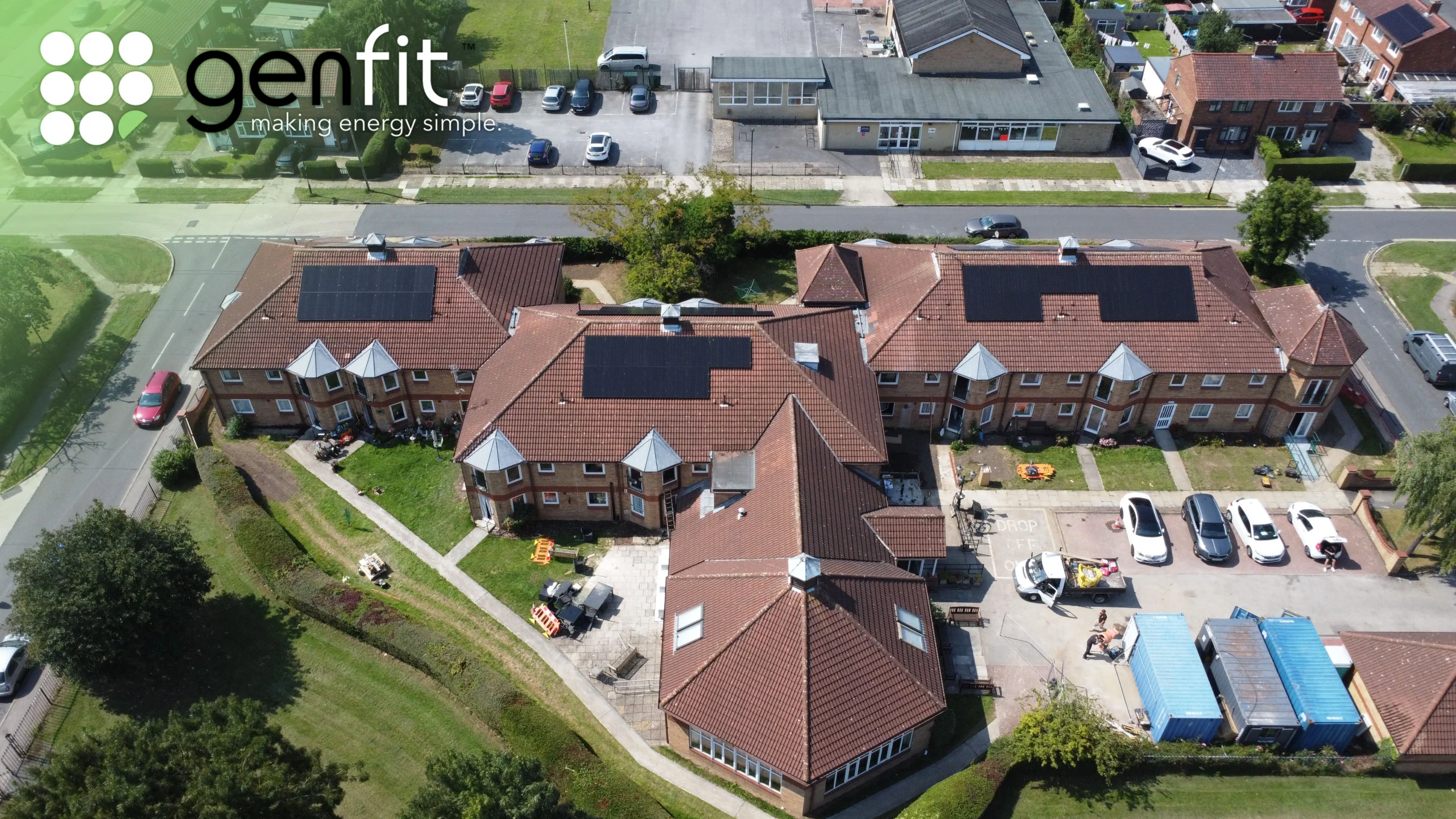

We’re proud to have delivered this Solar PV installation at Oak Lane Clinic for Central London Community Healthcare NHS Trust. The project demonstrates how healthcare buildings can make effective use of available roof space to generate clean electricity, reduce reliance on the grid and support long-term carbon reduction goals. It’s been a pleasure working with CLCH and contributing to their continued investment in more sustainable healthcare facilities.

– Dave Houston

Director, Genfit

Stay up to date with smarter energy advice

Get useful updates on solar PV, battery storage, SEG payments, energy-saving tips and the latest Genfit news.
