Christleton Sports Centre Solar PV System

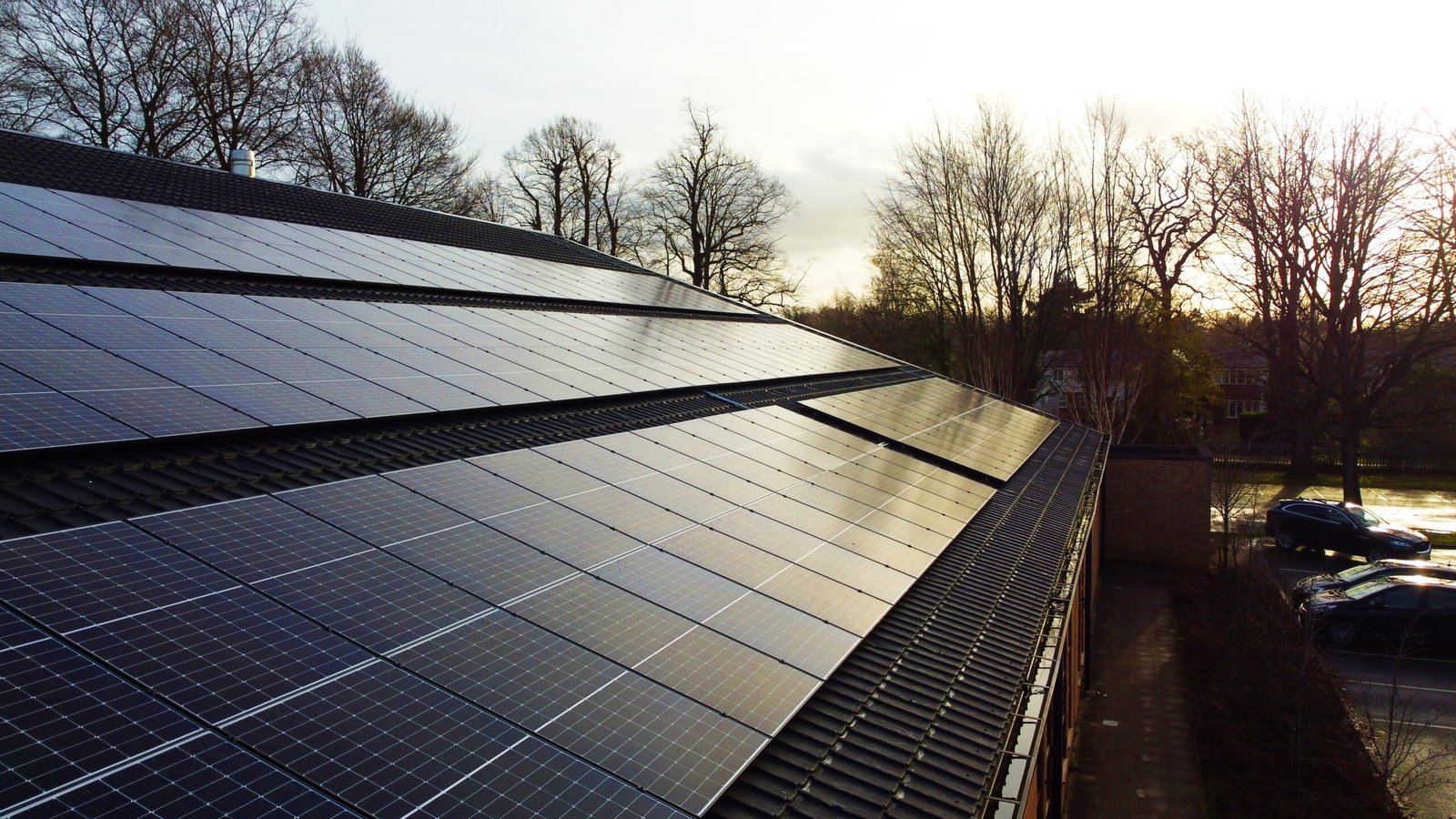

In November last year, we returned to Christleton Sports Centre to install a second Solar PV System for their sports centre due to them being impressed with the work of our first solar PV installation. The new system was built on the roof of the swimming pool which is one of the most used facilities at the sports centre. The PV system consisted of a huge 160 x Longi Solar, LR4-60HPH-370M solar panels with half the amount of P801 optimizers so they could connect to two solar panels each. We also installed a 3-phase SolarEdge 50K Manager inverter inside the building wired up to the system on the roof to complete the system.

All together the installed DC power of this system is 59.20 kWp which if you combine the power with the original system installed it is nearly reaching 160kWp. The system is estimated to produce 45.54 MWh of energy every year which will mainly be used to power to the swimming pool facilities such as the pool itself, lights, showers, etc. The system will save around 10.61 tonnes of Co2 emissions every calendar year, which is equivalent to 487 trees being planted.

Installed DC Power (kWp)

Max Achieved AC Power (kW)

Annual Energy Production (MWh)

CO2 Emission Saved (Tonnes)

Equivalent Trees Planted

Christleton Sports Centre

Christleton Sports Centre is the perfect place in the community to get active! The gym and fitness class timetable offer plenty of variety, and the pool offers various swimming sessions as well as swimming lessons for all ages. The sports hall and 3g pitch are also available for bookings.

Technology

Solar Panel

Longi Solar LR4-60HPH x 160

Warranty

12 Years Product Warranty

Efficiency

20.3 – 20.9%

Dimensions

1755 x 1038 x 35mm

Weight

19.5 kg

Inverter

Solaredge 50k Manager x 1

Optimiser

P801 x 80
