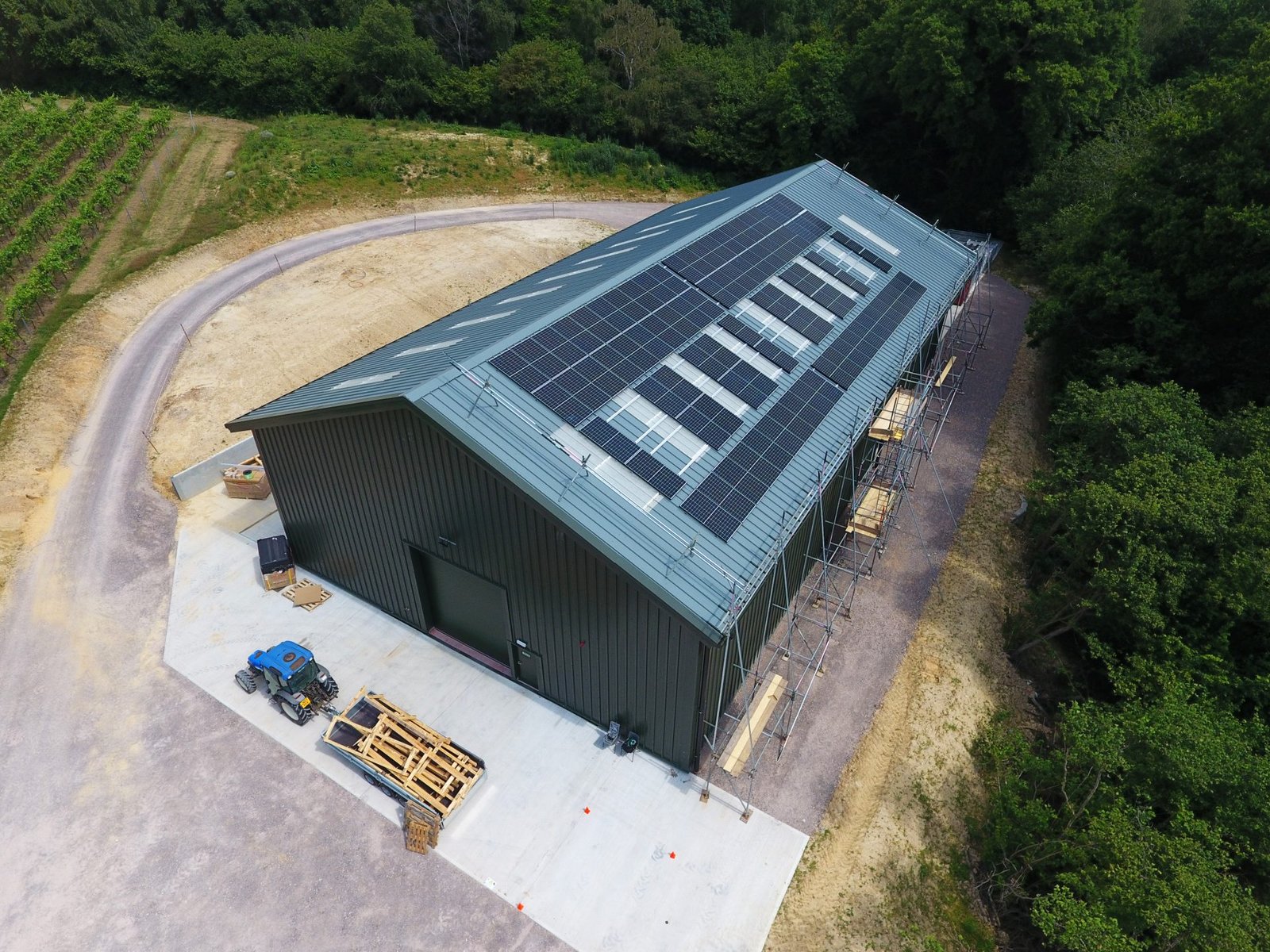

Genfit have designed and installed a 59.4kWp solar PV array across two roof spaces, following the construction of a new winery, at Bolney Wine Estate in Sussex.
The system installation was a community funded project by Brighton Energy Cooperative. The energy generated will be sold to the winery at a lower rate than regular fossil fuel generated power through a PPA (power purchase agreement.
The system benefits from dual module level system monitoring, through Solaredge panel optimisation. This helps towards providing detailed data and analysis on the PV systems performance through the Solaredge Monitoring Portal.
198 PV modules were installed in total, providing an estimated annual generation of 63.6MWh.
The array is greatly reducing the winery’s usage of energy from fossil fuel, creating a saving of 28.57 tonnes of harmful CO2 emissions each year.
Installed DC Power (kWp)
Max Achieved AC Power (kW)
Annual Energy Production (MWh)
CO2 Emission Saved (Tonnes)
Equivalent Trees Planted
Gallery
Technology
Solar Panel
JA Solar x 90
BYD x 108
Warranty
JA Solar: – 80% Power Output Warranty Period 25yrs – 90% Power Output Warranty Period 12yrs – Workmanship Warranty Period 12yrs
BYD: – 12 years for product – 25 years linear Warranty
Efficiency
JA Solar: 18.94%
BYD: 16.9%
Dimensions
JA Solar: 1678mm x 991mm x 35mm
BYD: 1645mm x 992mm x 35mm
Weight
JA Solar: 18.5kg
BYD: 18.7 kg
Inverter
Solaredge 25k x 2
Optimiser
P600 x 54
P730 x 46
